Two different formatted y-axis

[gsmbee]

Hi,

I’m fighting with how to display two different y-axis, one with positive/negative values and the other with only positive values. Both should have their 0 point in the center:

the green line (right y-axis) is the SOC of my battery and can of course only between 0 and 100%. One solution could be to hide the negative values, but then the 0 of the left y-axis doesn’t fit anymore with right one…

Is it understandable what I want to achieve? Not that easy to explain (especially in English on top)

Thanks,
Andi

[ldrascic]

Hi @gsmbee,
You already did the best you could on picture 2. Only thing I would change is that you could use Soft Min=0 instead of Min=-3.5 for left y-axis. That way you would get smaller empty space in negative range but you will still see all negative values (if they exist).


Here is a brief explanation of difference between Soft Min/Max and Min/Max:

Time Series Bars are out of proportion

Hi @starfoxfs, Bars are not proportional because y-axis starts from 8.6 kWh instead of 0 kWh. You can change that y axis starts from 0 by setting Min = 0 (under Standard options). [Grafana define minumum value for y axis] Another option is to define Soft min = 0 (under Overrides) which will do the same. Key difference is that soft boundaries can be exceeded while true boundaries (Min/Max) can’t. So, if you use boundary Min = 0 and have negative values of power (just an example) those won’t b…



Best regards,
ldrascic

[gsmbee]

Hi Idrascic,

thanks for your answer!
Does this mean that what I want to have is not possible?

Goal is still to have the left and right y-axis 0 value on the same horizontal position:

Kind regards,
Andi

[ldrascic]

@gsmbee,
Maybe you can change back from Soft Min to Min=-3.5 for left axis and set Min=-100 for right axis?

Best regards,
ldrascic

[gsmbee]

thanks again!

I played a lot with min/max, soft min/max, centered zero, etc. and this is best (in my eyes) what I can achieve:

still the negative values for the SOC makes no sense, but hey it is how it is

Merci,
Andi

[melori.arellano]

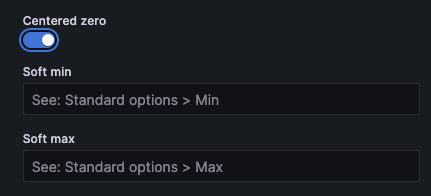

@gsmbee if you’re using grafana 9.1+ there is a new setting that might help you or others accomplish this easier in the future. You might still have to play with soft min/max if you’re using different units.

[melori.arellano]

I just saw here that you found the centered zero setting
