GEOMAP, Problems after update to 12.2

Grafana
1

Hi all,

after updating to 12.2., my GEOMAP-panels are working wrong.

There are two problems:

  • the colour of mareker are wrong at some marker (in the red square), at some not (the green ones for example). In the same panel.
  • image
    image318×324 50.5 KB

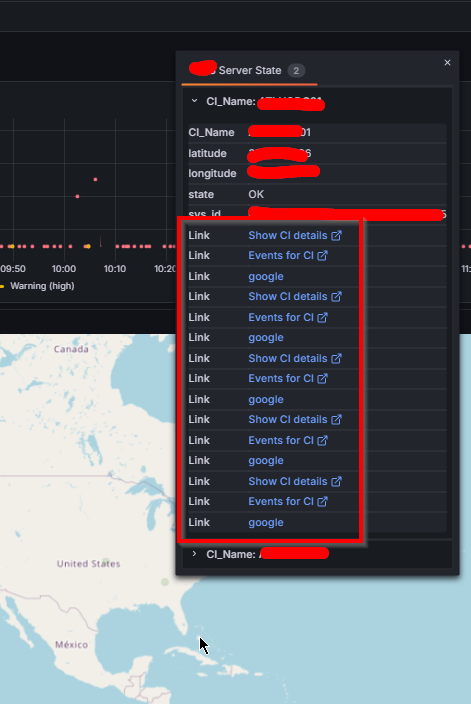

  • data links are shown five times instead of one

image471×704 56.3 KB

Any idea?

Thanks a lot

Regards

Jürgen

2

Welcome @jo49

I am not seeing this issue myself on 12.2. Can you clone that dashboard, then edit something simple like the title, save it and see what happens?

image623×386 40.1 KB

3

Hi,

I did two things:

  • copied the geomap-panel inside thew dashboard and change the name –> nothing happend, both panels worked wrong
  • cloned the whole dahsboard and chneged some things –> nothing happened, the panel in the new dashboard works also wrong

Forgott soemthing to mention: the datasource is infinity and the data’s are out of a csv-file.

4

And it looks like, that for each coloum a datalink-pair is generated, instead of generating only one pair..

My csv has five columns and I get five pairs of datalinks …

How could I avoid this? ….

5

image469×515 37.8 KB

yep I get it as well, time to file a bug

But it does not happen with following plugin that was a fork from geomap

image398×181 8.24 KB

6

Ok, so I’ll check the “Orchestra Cities Map”

And the wrong colour of the marker: I fixed it with changing the “fill-opacity” to 1

1 Like
