Setting up API with application portal

Grafana Configuration
1

Hi,
I have installed OSS Grafana on a standalone Windows server. I am trying to make an API connection an application portal. I am able to generate the access token from the portal. How do I make the integration from Grafana to the portal.
Thanks
Jayson
→

  • What Grafana version and what operating system are you using?

  • What are you trying to achieve?

  • How are you trying to achieve it?

  • What happened?

  • What did you expect to happen?

  • Can you copy/paste the configuration(s) that you are having problems with?

  • Did you receive any errors in the Grafana UI or in related logs? If so, please tell us exactly what they were.

  • Did you follow any online instructions? If so, what is the URL?

2

You may consider this solution to resolve your issue — I hope it proves helpful.
Step : 1 Confirm your environment
API type: Your portal must expose a REST API (returning JSON).
Access Token
Step : 2 Install the JSON API Plugin

This plugin lets Grafana pull data from any REST API.

Open Command Prompt as Admin

grafana-cli plugins install marcusolsson-json-datasource

Restart Grafana service

Step 3: Add JSON API Datasource in Grafana
Open Grafana in your browser (http://localhost:3000 or server IP).
Data Sources>Add data source > JSON API
Configure:
URL: https://your-portal.com/api
Authentication
Header name: Authorization
Header value: Bearer YOUR_ACCESS_TOKEN
Save & Test

Step : 4 Create a Dashboard Panel
In the query editor:
Set Relative path: ( metrics → which becomes https://your-portal.com/api/metrics)
Run Query
the data appears, use Transform → Extract fields to parse JSON

Step 5: Parse JSON

{
  "data": [
    {"timestamp": "2025-07-24T10:00:00Z", "value": 82},
    {"timestamp": "2025-07-24T11:00:00Z", "value": 85}
  ]
}

Use these fields:

  • Time field: data[*].timestamp
  • Value field: data[*].value

Final output look like

image714×114 1.65 KB

3

Hi Shanker,

I cant find the Header option in your step # 3

image.png1920×1080 197 KB

4

You can find the Header section just below the TLS Settings

image1117×542 29 KB

If you face any further issues, feel free to reach out to me.

5

JSON Api plugin is in maintanence only mode. ( Almost deprecated and no new features added last couple of years ). Consider using infinity data source instead. ( Also use one of the backend parsers when using infinity )

2 Likes
6

Hi Shanker.

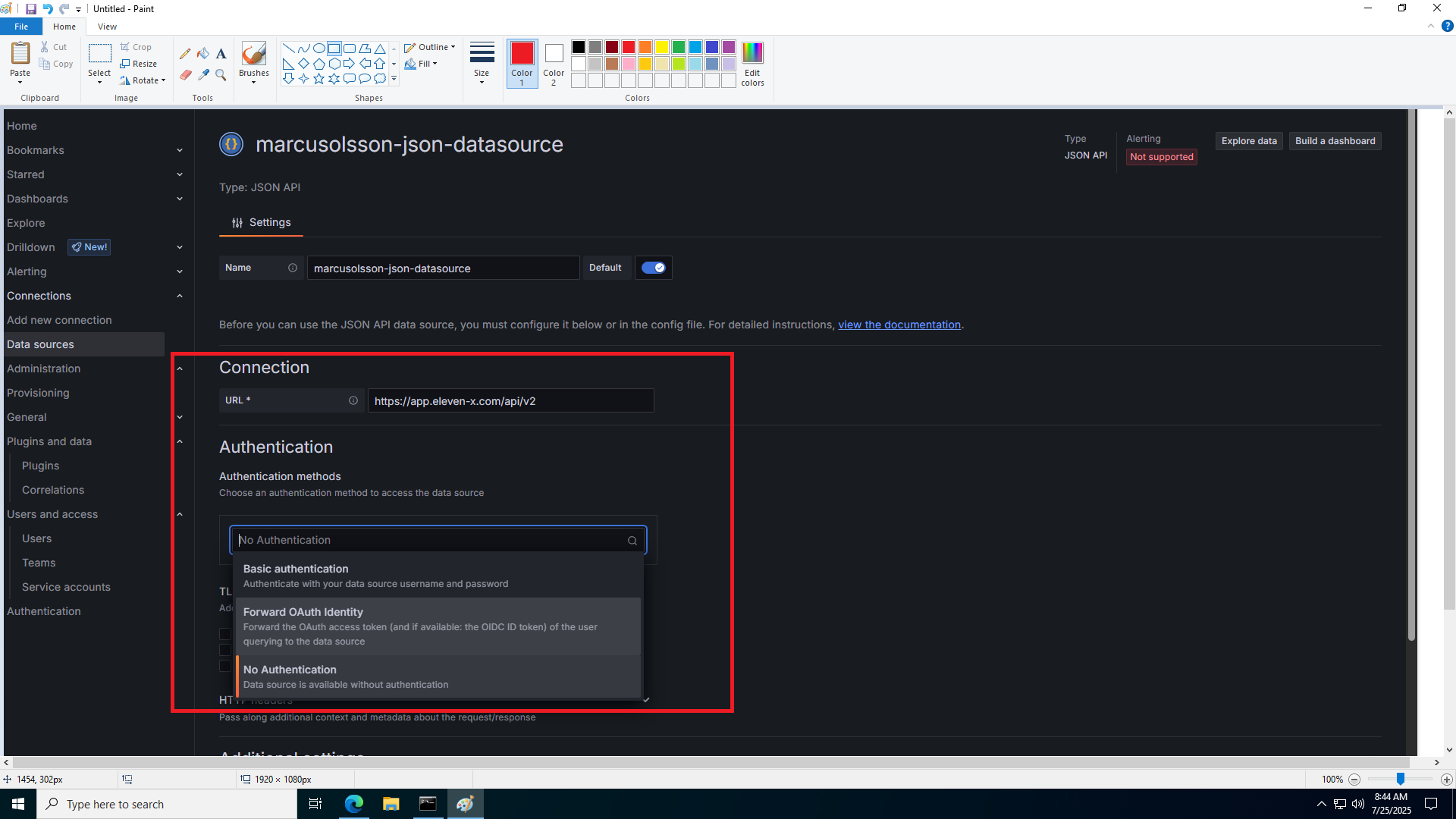

I tried again using the header in your step #3. Under Authentication, I selected ‘No Authentication’ and then entered the following under the HTTP header fields: I pasted the token key text inot the Value. When I did a Save & Test, I got the error message shown below.

image.png990×949 78.6 KB

7

Hi Shanker,

I can’t seem to find the fields you mentioned in step 4. Please help.

image.png1799×830 127 KB

8

as recommended by @yesoreyeram might want to use infinity plugin instead.

9

Are the steps same in Infinity as that Shanker listed, or are the steps different?
