Hello.

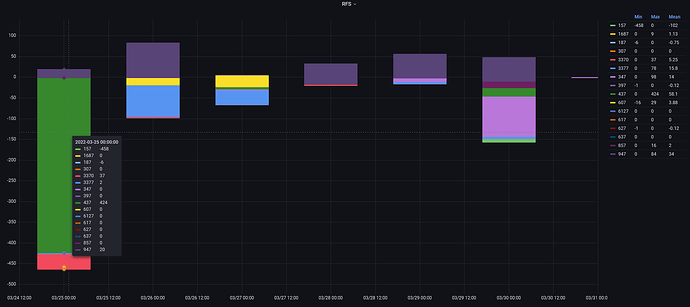

I have a stacked bar chart and negative values don’t stack with positive ones. I use Graph(old) and Time series both of them does not work properly with negative value.
Here is Graph(old). Staking is set to normal.
"fill": 1,
"linewidth": 1,
"dashLength": 10,
"spaceLength": 10,
"pointradius": 2,
"bars": true,
"stack": true,
"nullPointMode": "null",
"tooltip": {
"value_type": "individual",
"shared": true,
"sort": 2
And here Time series, with the same problem.
"fieldConfig": {
"defaults": {
"custom": {
"drawStyle": "bars",
"lineInterpolation": "linear",
"barAlignment": 0,
"lineWidth": 1,
"fillOpacity": 100,
"gradientMode": "none",
"spanNulls": true,
"showPoints": "never",
"pointSize": 5,
"stacking": {
"mode": "normal",
"group": "A"
},
"axisPlacement": "auto",
"axisLabel": "",
"scaleDistribution": {
"type": "linear"
},
"hideFrom": {
"tooltip": false,
"viz": false,
"legend": false
},
"thresholdsStyle": {
"mode": "off"
}
},
"color": {
"mode": "palette-classic"
},
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
}
]
},
"mappings": [],
"links": [],
"unit": "short"
},
"overrides": []
},
"options": {
"tooltip": {
"mode": "multi"
},
"legend": {
"displayMode": "table",
"placement": "right",
"calcs": [
"min",
"max",
"mean"
]
}
},
It is Grafana 8.3.6, can’t check it on early one
I found several similar topics, but none of them have a solution.
Best regards
Vladimir
