Gauge graph threshold from query

Grafana Time Series Panel
1

I have two queries to calculate all records and the verified records.

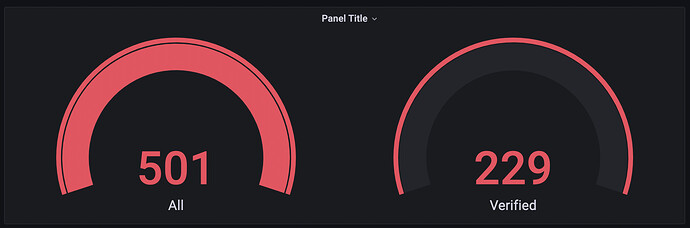

Screen Shot 2021-12-03 at 5.41.06 PM
Screen Shot 2021-12-03 at 5.41.06 PM2038×676 96.2 KB

verified records will always be less than or equal to the all records but not more than that.

I want to use all as the threshold for the gauge graph and show both queries on the single gauge graph.

I couldn’t see any option to merge the queries in a single gauge graph.

2

hi @anujsharma9196

I think you should explore the new config from query results transformation, which was designed for similar situations:

3

How can i use the “config from querry results” multiple time? if i add another i´m not able to select a Querry

4

I’m not sure it is possible to chain multiple config from query transformations :frowning_face:
