Singel Gauge with 3 prometheus queries


I try to create a gauge with dynamic values from prometheus queries:

sum(kube_pod_container_resource_requests{resource="cpu", namespace="$namespace", container="service-x"}) by (container)

(legend: min)

sum(kube_pod_container_resource_limits{resource="cpu", namespace="$namespace", container="service-x"}) by (container)

(legend: max)

sum(rate(container_cpu_usage_seconds_total{namespace=~"$namespace",container="service-x"}[1m])) by (container)

(legend: cur)

With the transformation “Outer Join” with field Name “Time”, all values are merged to a single table

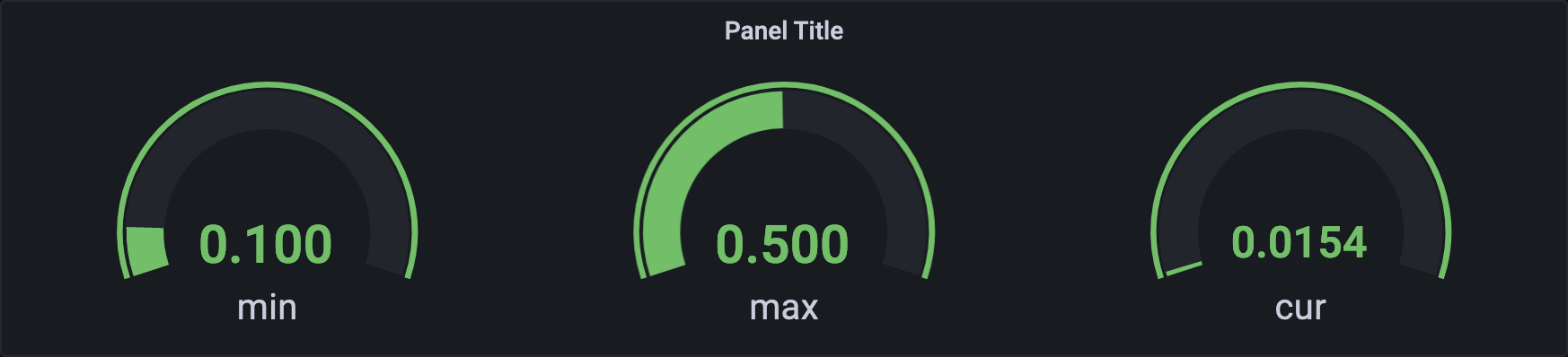

The next transformation is Rows to field, but it seems not to work (as intended). I still have 3 gauges…
Also i hoped (as described in the documenation - i could set a threshold from field (since min should be zero and “min” the threshold.

rows to field

I’m really out of ideas.

@tinaburschka perhaps I missed this but have you tried using the new beta transformation: config from query results?

Yes, and the downside of this is that i can only configure one query - min or max, but not both…
