Energy Monitor visualization

I am a complete newbie in Grafana and I am just working my way in. I have understood the basic principle and am currently visualizing the data of my home automation from an InfluxDB. I have already looked at various dashboards and chart types.

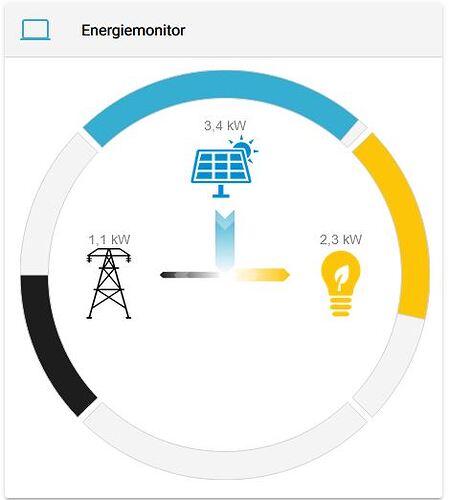

I would like to visualize the current energy balance of my house in the form below. Is there a solution for this? Is Grafana capable of such visualizations at all.

Welcome Newbie!

Based on what you have shown, the closest thing I know you can create in Grafana would be a Pie Chart in Grafana. Grafana does not offer the ability to put the icons (solar, etc.) into the legend.

You’ll have to write a query in InfluxDB to generate the Pie Chart.

1 Like

you could try to do this using SVG plugin

Check this out

1 Like

or this
