SVG Panel + SQL Server query

Grafana MSSQL
1

Hi,
I should do a svg project which displays data from a query (SQL Server).
To start I’m trying to put a query value in a cell but I don’t know how to do it.

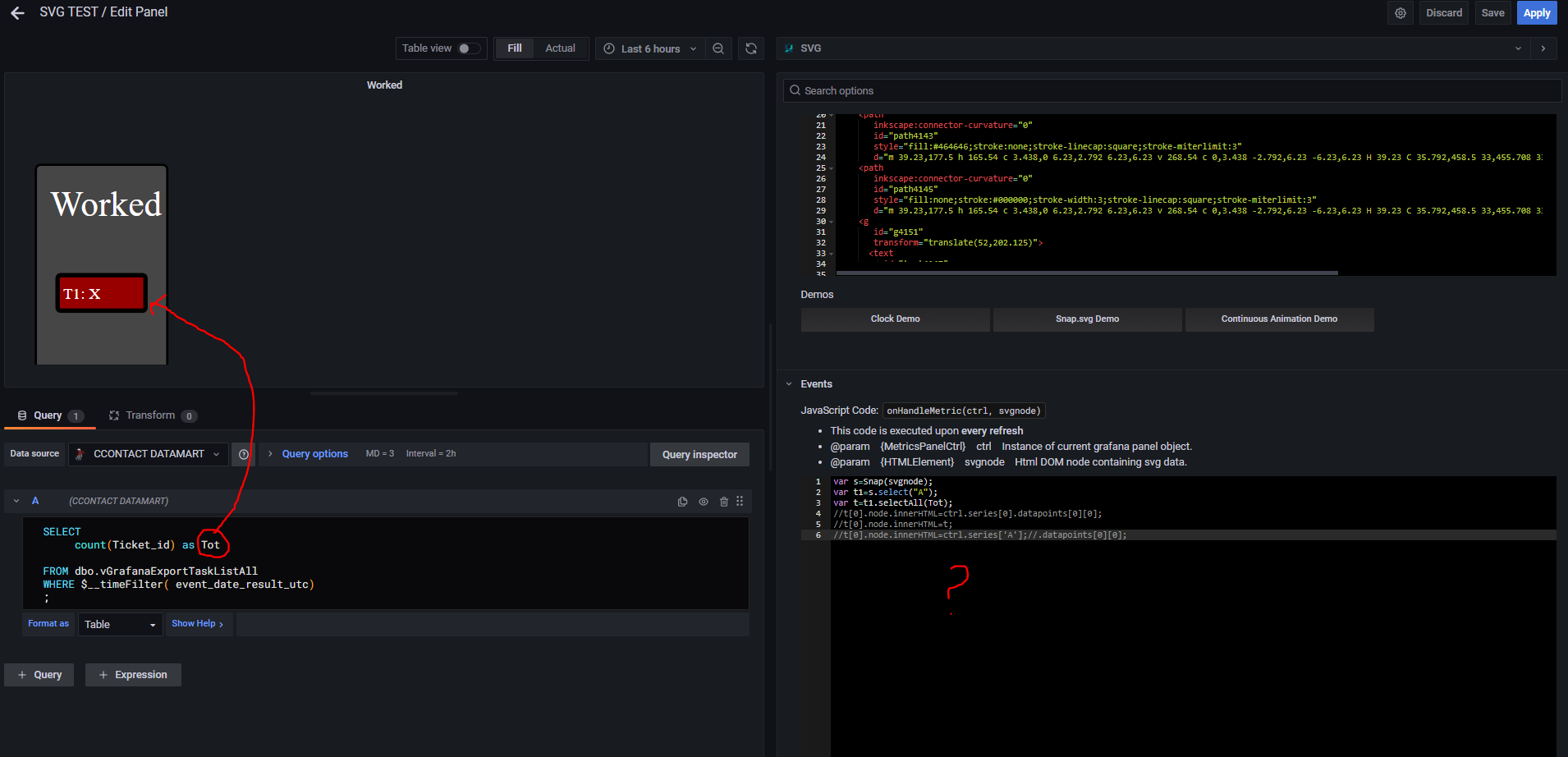

image1910×922 87.5 KB

Can anyone assist me?
Thanks
Valentina

2

which SVG panel plugin? There are a few, but all community-built I believe

3


4

your data as the documentation indicates will be found in the ctrl.
Add the following to your code and you will see the content of the data you are looking for

var s = Snap(svgnode);
console.log('Hard to Grok this vsg thing', ctrl)

and here it is in the console. it reappears every time you change a piece of code

image552×593 50.1 KB

5
var s = Snap(svgnode);
var tot = ctrl.data[0].rows[0].Tot;
buildRectangle();


function buildRectangle() {

   var rect = s.rect(10,10,150,150);
    rect.attr({fill: "#bada12"})
    var text = s.text(50, 135, "T1:" + tot.toString())
    text.attr({
          'font-size':25,
          'fill': "#bada2"
      });
}

function buildCircle() {
    var bigCircle = s.circle(150, 109, 110);
    bigCircle.attr({
        fill: "#bada55",
        stroke: "#000",
        strokeWidth: 5
    });

}


1 Like
