State Timeline of my newborn naps - fixed x-axis

Grafana Time Series Panel
1

Good morning,

I have been trying to monitor the naps of my newborn and plot them as a State Timeline. Please see screenshot below:

image1265×395 28.9 KB

My intention is to have on the y axis the last 7 days (according to the time range selected in the dashboard). On the x axis I am trying to have a fixed axis that starts from 00:00 and ends at 23:59.

With such a configuration I would be able to compare days and highlight patterns.

I am almost there, what is missing is the fixed x-axis. As you can see, the axis is rolling with the advancing of the day. How can I keep it fixed.

Please see below my current Flux query to take thata from InfluxDB:

import "date"
import "strings"
import "timezone"
option location = timezone.location(name: "Europe/Rome")

base =
  from(bucket: "baby-care")
    |> range(start: -7d)
    |> filter(fn: (r) =>
      r._measurement == "baby_events" and
      r.event_type == "Nap"
    )
    |> pivot(
      rowKey: ["_time", "parent", "user_id"],
      columnKey: ["_field"],
      valueColumn: "_value"
    )
    |> map(fn: (r) => ({
      r with
      start_time: time(v: r.start),
      stop_time:  time(v: r.stop),
    }))
    |> map(fn: (r) => ({
      r with
      start_day: date.truncate(t: r.start_time, unit: 1d),
      stop_day:  date.truncate(t: r.stop_time,  unit: 1d),
    }))
    |> keep(columns: ["start_time","stop_time","start_day","stop_day"])

// Segment that belongs to the start day (up to either the stop or end of that day)
segStartDay =
  base
    |> map(fn: (r) => ({
      r with
      day_label: strings.substring(v: string(v: r.start_day), start: 0, end: 10), // YYYY-MM-DD
      seg_start: r.start_time,
      seg_end: if r.stop_time < date.add(d: 1d, to: r.start_day)
               then r.stop_time
               else date.add(d: 1d, to: r.start_day),
    }))
    |> filter(fn: (r) => r.seg_end > r.seg_start)
    |> keep(columns: ["day_label","seg_start","seg_end"])

// Segment that belongs to the stop day (from its midnight to the stop time), only if different day
segStopDay =
  base
    |> filter(fn: (r) => r.stop_day != r.start_day)
    |> map(fn: (r) => ({
      r with
      day_label: strings.substring(v: string(v: r.stop_day), start: 0, end: 10), // YYYY-MM-DD
      seg_start: r.stop_day,
      seg_end: r.stop_time,
    }))
    |> filter(fn: (r) => r.seg_end > r.seg_start)
    |> keep(columns: ["day_label","seg_start","seg_end"])

// Combine and rebase each segment’s time-of-day onto TODAY’s midnight
segments =
  union(tables: [segStartDay, segStopDay])
    |> rename(columns: {seg_start: "_time", seg_end: "timeEnd"})
    |> map(fn: (r) => ({ r with _value: "Nap" }))
    |> keep(columns: ["day_label","_time","timeEnd","_value"])

// Today’s local midnight for rebasing
today0 = date.truncate(t: now(), unit: 1d)

segments
  |> map(fn: (r) => ({
      r with
      _time:   time(v: int(v: today0) +
                       (int(v: r._time)   - int(v: date.truncate(t: r._time,   unit: 1d)))),
      timeEnd: time(v: int(v: today0) +
                       (int(v: r.timeEnd) - int(v: date.truncate(t: r.timeEnd, unit: 1d)))),
    }))
  |> group(columns: ["day_label"])
  |> sort(columns: ["_time"])

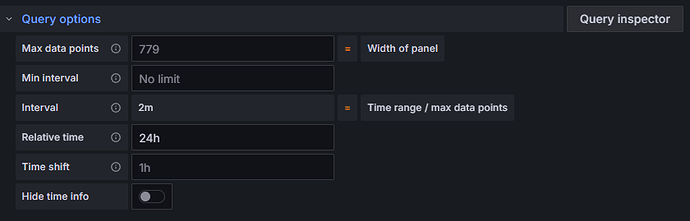

Also I have set the following query options:

image840×270 16.3 KB

Any suggestion would be very much appreciated.

My current Version is: Grafana v11.6.0

Thanks a lot!
