Hi there,

I’m trying to set my metrics in PictureIt - Plugin, but I cant get it to work.
only with Randomwalk it works.

some information about my Metrics:
I’m Using Influxdb

Timestamp is in nanoseconds.
Display value is Temperature as float

what is different in randomwalk?


#2

It is not very obvious from the docs but the value in the Metrics field:


has to match the label/tag/metric from your query. In this case I have a query that returns a metric named def.


#3

Dear Danielee,

First of all, thanks for your help.

I’ve some information for people searching for help:

  1. The URL for picture file, should be placed in the “grafana user” directory, for instance, in Ubuntu it’s /usr/share/grafana.
    And a good place is /usr/share/grafana/public/img/your_picture.png, and use “/public/img/your_picture.png” for the “Picture URL” field.

Second, I didn’t understand how to “select” the value to display…
For instance, my search is something like:

Should I use “tcp_bits_per_second” as the value for the “metric” field?

Thanks,
Jorge


#4

Ok, Done.

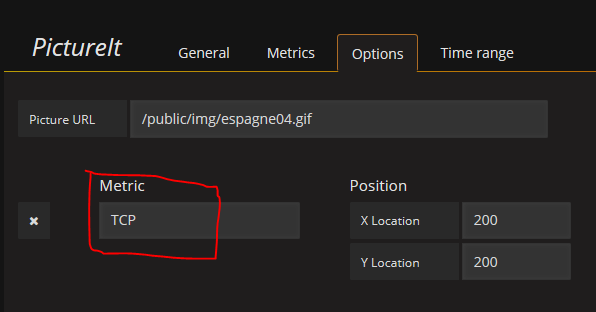

So sorry, you can just use “ALIAS BY” to set up a name… and then use it in the “Metric” field:
