Set bar colour according to the value of another field

Grafana Time Series Panel
1
  • What Grafana version and what operating system are you using?

Grafana 11.3.1 on Debian Linux 12.8

  • What are you trying to achieve?

I have a time series graph with one bar graph and one line graph. The query includes another field that will always be either 1 or 0. I would like the value of that field to determine the colour of the bar graph.

  • How are you trying to achieve it?

I’ve looked at overrides and thresholds, but I’ve not been able to use one field to colour another.

2

Hi,

Have you checked out Config from Query transformation? It might be what you’re looking for.

3

Thank you. That feels tantalisingly close - I’ve select the bar field as the “apply to” field, and I’ve said the 0/1 field to be “Value mappings / color” but I can’t see how to map the 0/1 to (say) red/green.

4

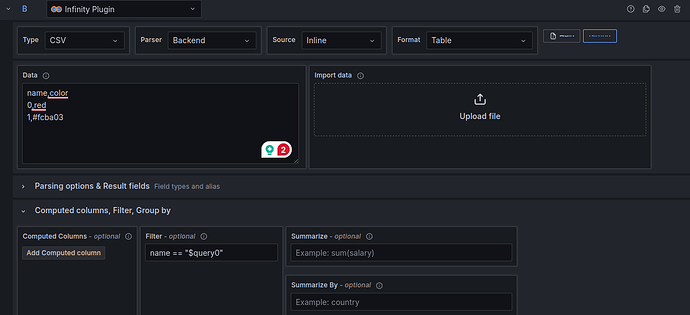

Ok, I might have been too quick for that :smile: Unfortunately I’m not quite sure how to do that with just 0/1 values. To use it in overrides it should be a color (e.g. name or hex). A workaround I found is to use Infinity Plugin with CSV mode and listing mapping from your 0/1 value to a color, like in the screen:

image1246×569 40.1 KB

Second thing you need to do is to create a variable (in my case query0) that will return the 0 and 1. The filter expression filters the CSV entries to only interesting color. Here’s my transformation configuration (I think I might have some bug / old data though for Time and vector(1) fields :smile:)

image553×342 20.4 KB

Anyway, if you’re using InfluxDB, you could theoretically return the color instead of 0/1 with conditional logic. AFAIK prometheus doesn’t support such behavior.

1 Like
5

Thanks for your help. In the end I added a transformation that multiplied the value of the bar graph by my 0/1 field, and representing the result as a bar graph in a different colour. That overlays the original bar graph and so is a good workaround to fix my problem.
