How to configure dynamic threshold from table values

Grafana Dashboards
#1

Hi all,

I want to configure my threshold value from a SQL table.

I don’t see any option to link the threshold. The reason i want to do that it’s to set different panel with the same threshold value. If i change the value in my table i want these value to upload the new threshold for my panels.

Any idea how i can do it ?

Regards,
Mathieu

#2

@mharvey1

In a nutshell, no, one cannot dynamically feed values into the Thresholds boxes in the panel settings.

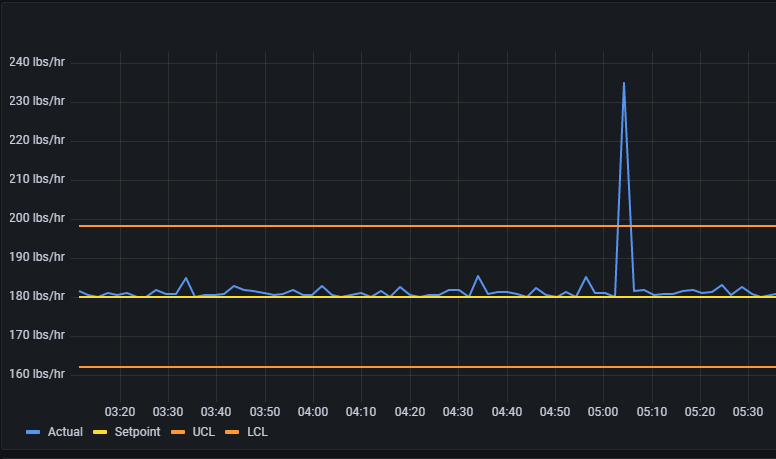

However, you can create plot separate queries that accomplish the same goal, like this:

image776×459 7.39 KB

#3

Hi @grant2,

Thanks for your answer. If my data is at two different place (infloxDB and SQLDB), can we run two separate queries on the same panel?

Regards,
mathieu

#4

Yes, you can use different datasources.
