Grafana Cloud plugin installation with Terraform

Grafana Cloud
, ,
1

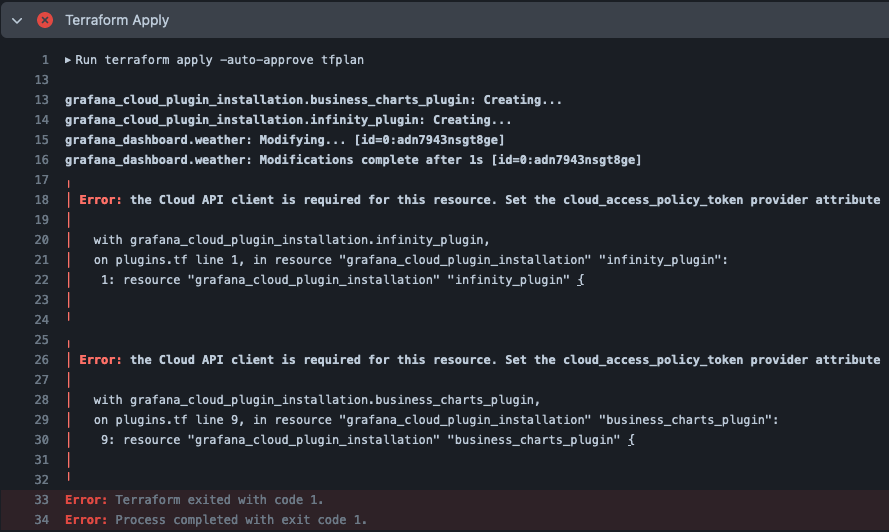

Hi, I am running into an issue where I am trying to install a plugin on Grafana Cloud through Terraform, and I am getting an error that says:

Error: the Cloud API client is required for this resource. Set the cloud_access_policy_token provider attribute

with grafana_cloud_plugin_installation.infinity_plugin,
on plugins.tf line 1, in resource “grafana_cloud_plugin_installation” “infinity_plugin”:
1: resource “grafana_cloud_plugin_installation” “infinity_plugin” {

The only other thing that I did was to upgrade the grafana provider version from 2.9.0 to 3.2.0, but I am not sure if this is the root cause of the issue because the version 3.0.0 of the [release notes](https://github.com/grafana/terraform-provider-grafana/releases/tag/v3.0.0) mentioned this:

Bump the Terraform provider to the latest v2 version, apply, then upgrade to v3 and remove/replace all the attributes that have been removed.

terraform_cloud_access_policy_token_attribute
terraform_cloud_access_policy_token_attribute889×532 59.3 KB

*Update: The issue is not related to the 2.9.0 to 3.2.1

2

Caution

Grafana Cloud Access Policies have replaced Grafana Cloud API keys. Use access policies and tokens instead of Cloud API keys.

I think you are using old API key for auth, so it is trying to force you to access policies.

3

Hi, thanks for helping me out! You were on to something! Someone had defined two different providers where one was using the auth attribute and another was using the cloud_access_policy_token attribute. I removed the provider that used the auth attribute and updated the other configuration files to use only one provider, but I am getting this error:

Error: the Grafana client is required for this resource. Set the auth and url provider attributes
  with grafana_data_source.infinity,
  on datasources.tf line 1, in resource "grafana_data_source" "infinity":
   1: resource "grafana_data_source" "infinity" {

Here’s the configuration:
providers.tf

terraform {
  required_version = ">= 1.8.2"
  required_providers {
    grafana = {
      source  = "grafana/grafana"
      version = ">= 3.2.1"
    }
  }
}

provider "grafana" {
  alias                                     = "cloud_stack"
  cloud_access_policy_token = var.cloud_access_policy_token
  # Adding url attribute here causes a Cycle Error and does not work
  # url                                      = grafana_cloud_stack.some_stack.url
}

main.tf

resource "grafana_cloud_stack" "some_stack" {
  provider = grafana.cloud_stack

  name        = "some-stack"
  description = "A dashboard of sorts"
  slug        = "some-stack"

  region_slug = "us"
}

resource "grafana_cloud_stack_service_account" "some_service_account" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug

  name        = "Some Service Account"
  role        = "Admin"
  is_disabled = false
}

resource "grafana_cloud_stack_service_account_token" "some_service_account_token" {
  provider = grafana.cloud_stack

  stack_slug         = grafana_cloud_stack.some_stack.slug
  service_account_id = grafana_cloud_stack_service_account.some_service_account.id

  name = "Some Service Account Token"
}

plugins.tf

resource "grafana_cloud_plugin_installation" "infinity_plugin" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug
  slug       = "yesoreyeram-infinity-datasource"
  version    = "2.8.0"
}

resource "grafana_cloud_plugin_installation" "business_charts_plugin" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug
  slug       = "volkovlabs-echarts-panel"
  version    = "6.1.0"
}

variables.tf

variable "cloud_access_policy_token" {
  description = "The access policy token for the Grafana Cloud account"
  type        = string
}
4

OMG :wink:

You didn’t provide reproducible example - datasources.tf is missing for example.

You need 2 providers:

  • “grafana cloud” provider (cloud_access_policy_token)
  • “grafana” provider (auth)

Then use right provider for right resource. E.g.

  • grafana_cloud_stack_service_account → “grafana cloud” provider
  • grafana_data_source → “grafana” provider
    …

It looks like you are mixing resource with incorrect providers

1 Like
5

Thank you for the help! It works now! We were getting a Forbidden 403, but this was fixed when we added some permissions for stack-plugin. There’s a more complete version of the Terraform configuration we were using.

main.tf

resource "grafana_cloud_stack" "some_stack" {
  provider = grafana.cloud_stack

  name        = "some-stack"
  description = "A dashboard for the Common Operating Picture"
  slug        = "some-stack"

  region_slug = "us"
}

resource "grafana_cloud_stack_service_account" "some_service_account" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug

  name        = "Some Service Account"
  role        = "Admin"
  is_disabled = false
}

resource "grafana_cloud_stack_service_account_token" "some_service_account_token" {
  provider = grafana.cloud_stack

  stack_slug         = grafana_cloud_stack.some_stack.slug
  service_account_id = grafana_cloud_stack_service_account.some_service_account.id

  name = "Some Service Account Token"
}

backend.tf

terraform {
  backend "s3" {
    bucket         = "terraform-states"
    key            = "grafana/terraform.tfstate"
    dynamodb_table = "terraform-state-lock"
    region         = "us-west-2"
    encrypt        = true
  }
}

dashboards.tf

resource "grafana_dashboard" "some_dashboard" {
  provider = grafana.oss_with_auth

  folder = grafana_folder.dashboards.id

  config_json = file("./some_config.json")
}

datasources.tf

resource "grafana_data_source" "infinity" {
  provider = grafana.oss_with_auth

  type = "yesoreyeram-infinity-datasource"
  name = "Infinity Data Source"

  json_data_encoded = jsonencode({
    "allowedHosts" : [
      "https://google.com"
    ]
  })
}

folders.tf

resource "grafana_folder" "dashboards" {
  provider = grafana.oss_with_auth

  title = "Dashboards"
}

plugins.tf

resource "grafana_cloud_plugin_installation" "infinity_plugin" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug
  slug       = "yesoreyeram-infinity-datasource"
  version    = "2.8.0"
}

resource "grafana_cloud_plugin_installation" "business_charts_plugin" {
  provider = grafana.cloud_stack

  stack_slug = grafana_cloud_stack.some_stack.slug
  slug       = "volkovlabs-echarts-panel"
  version    = "6.1.0"
}

providers.tf

terraform {
  required_version = ">= 1.8.2"
  required_providers {
    grafana = {
      source  = "grafana/grafana"
      version = ">= 3.2.1"
    }
  }
}

provider "grafana" {
  alias                     = "cloud_stack"
  cloud_access_policy_token = var.cloud_access_policy_token
}

provider "grafana" {
  alias = "oss_with_auth"
  url   = grafana_cloud_stack.some_stack.url
  auth  = grafana_cloud_stack_service_account_token.some_service_account_token.key
}

variables.tf

variable "cloud_access_policy_token" {
  description = "The access policy token for the Grafana Cloud account"
  type        = string
}

some_config.json

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "grafana",
          "uid": "-- Grafana --"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": 19,
  "links": [],
  "panels": [],
  "schemaVersion": 39,
  "tags": [],
  "templating": {
    "list": []
  },
  "time": {
    "from": "now-6h",
    "to": "now"
  },
  "timepicker": {},
  "timezone": "browser",
  "title": "Some Dashboard",
  "uid": "adn7943nsgt8gf",
  "version": 16,
  "weekStart": ""
}
1 Like
