Time Series Bars are out of proportion

[starfoxfs]

Hi,

i have Grafana 9.3.6 installt and a Time Series Panel for killowatthour per Month.

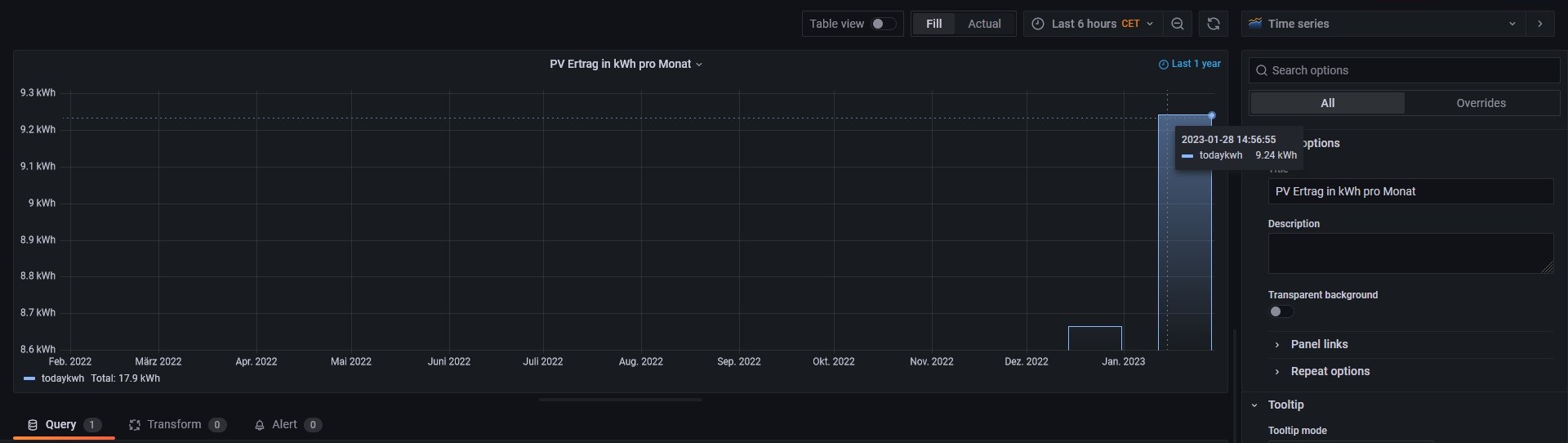

The Bars are not proportional (see Picture)

Heres my code:

from(bucket: "solarkraftwerk")
  |> range(start: -12mo, stop: now())
  |> filter(fn: (r) => r["_measurement"] == "solarkraftwerk")
  |> filter(fn: (r) => r["_field"] == "todaykwh")
  |> aggregateWindow(every: 24h, fn: last, createEmpty: false)
  |> truncateTimeColumn(unit: 1m)
  |> aggregateWindow(every: 1mo, fn: sum, createEmpty: false)
  |> timeShift(duration: -1d)

• What Grafana version and what operating system are you using?
  Raspberry Pi 4B Raspian OS 64bit Bullseye 11 Kernel 5.15
  Grafana 9.3.6

• What are you trying to achieve?
  Bars proportional

• How are you trying to achieve it?

• What happened?

• What did you expect to happen?

• Can you copy/paste the configuration(s) that you are having problems with?

• Did you receive any errors in the Grafana UI or in related logs? If so, please tell us exactly what they were.

• Did you follow any online instructions? If so, what is the URL?

[grant2]

@starfoxfs

|> timeShift(duration: -1d)

What does the graph look like when you remove the above?

Also, does using Step Before or Step After help?

EDIT: I misunderstood the original question. I thought it was about the alignment of the bars with the months, but it was about the proportional height of the parts. The solution by @ldrascic should work fine.

[ldrascic]

Hi @starfoxfs,
Bars are not proportional because y-axis starts from 8.6 kWh instead of 0 kWh. You can change that y axis starts from 0 by setting Min = 0 (under Standard options).

Another option is to define Soft min = 0 (under Overrides) which will do the same. Key difference is that soft boundaries can be exceeded while true boundaries (Min/Max) can’t. So, if you use boundary Min = 0 and have negative values of power (just an example) those won’t be shown on graph while if you use Soft Min = 0 then you would see those values on graph as well. In your case you can use either one because you can only get power from Solar panels ( well, untill short circuit ) .

Here is explanation between Max and Soft Max:

Best regards,
ldrascic

[starfoxfs]

Hi,

thanks for the fast answers

|> timeShift(duration: -1d)

If i delete this only the bars move 1day to future, but the Proportion is the same.

What helped is @ldrascic answer, setting an override with Soft min = 0

Now it´s fine
