Set 0 values when no data over 5 min

[weble]

Hello,

i use a MySQL database in this database are coming every minute data.

For the History of this data i have a own dashbaord, the user select a “batch number” and then all data to this number are loading.

i uses follow sql for this:

SELECT
  UNIX_TIMESTAMP(zeit) as time_sec,
  cast(replace(WERT1,',','.') as double) as "WERT1",
  cast(replace(WERT2,',','.') as double) as "WERT2",
  cast(replace(WERT3,',','.') as double) as "WERT3",
  cast(replace(WERT4,',','.') as double) as "WERT4"
FROM exporttable
WHERE AKTZEIT BETWEEN (SELECT min(AKTZEIT) FROM exporttable WHERE BATCH LIKE $Batch) AND (SELECT max(AKTZEIT) FROM exporttable WHERE BATCH LIKE $Batch)

it is working but, i have one problem:

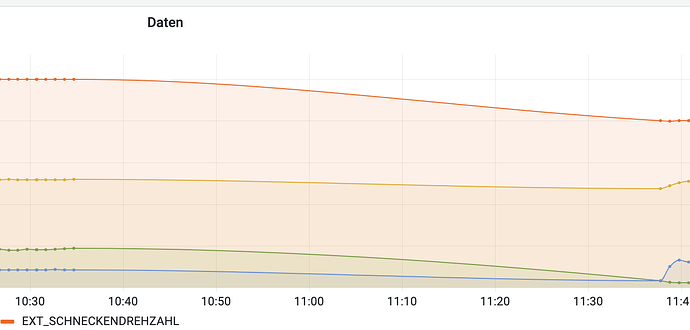

the data comes every minute, but wenn the machine is off i have no data, and the when the machine are working after many hours the laste value und the current value are “connected”:

i would like to have the line on zero and no connections.

I found no solution for this Problem. Can everybody help me?

[usman.ahmad]

Hi @weble,

Welcome to the community support forums !!

We are excited that you joined our OSS community. Please read about some of the FAQs in the community

What you can do is use the options on the right side go to → Graph Styles → Connect null values → and select “never” and then see if that works for you.

Let us know if this helps.

[immjb83]

What about if it isn’t a graph? I have a panel that shows On / Off values based on ICMP ping and if it returns no value after it drops out of time range the button disappears on me. Can I default to a value if the query returns null because outside of the time range?
