Rigth-Y with MySQL does not work

Grafana Time Series Panel
1

Hi guys.

Data Source: MySQL 5.5
Grafana Version: 6.0.1

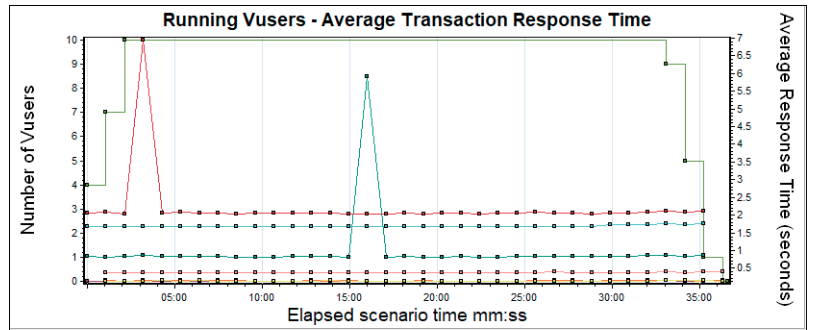

I am struggling to show two types of metrics in the same plot. I want to show as the next image (vUsers and avg response time).

Selección_305
Selección_305813×330 47 KB

In my testings, Grafana only shows the left Y but right / does not show it (even splitting the query in two). A few years ago I had worked with Graphite and these were easy to configure. Do you know if it is possible with MySQL as a data source?

Selección_307
Selección_307864×299 22.3 KB

2

Here more info.

Selección_308
Selección_308853×346 28.8 KB
Selección_306
Selección_3061892×301 97 KB

3

Hello,

You need to use series override to achieve this. On the first options group (above Axes options), click on “Add series override”, choose your serie name in the dropdown, click on + > Y-Axis > 2 and it should work! You can keep everything in a single query returning multiple series.

Here a quick screenshot of a series override doing what you want:

4

Thanks, It is just I want.
