Open weather map setup

[franck42]

Good evening
I try to install Open weather in my existing dashboard.
https://grafana.com/grafana/dashboards/9710-open-weather-map/
I have import the json open weather map , and I have link it whith my influxes > Ok
When I test my url api:
https://api.openweathermap.org/data/2.5/weather?lat=45.943512&lon=3.803590&appid=“here my api key” no problem Openweathermap return value.
But I don’t know generate my dashboard, query value ???

Sorry for my ignorance, I am newbie , thank you for your support.
Regads

[franck42]

Hello,
I’m still struggling to configure openweather.
I don’t know what’s happening, but now I have a bad request error in my data source when I test/save.
However, if I test my API address with curl -s, the server open weather returns the results to me.
I can’t find a simple tutorial that explains the configuration of openweather.
If a good soul could help me…thank you

[franck42]

Good evening,
I’m moving forward a little. I switched to infinity, and things are simpler. I haven’t configured anything at the plugin level, I go directly to dash creation, I enter my API, and miraculously I see that the API is communicating.

Several questions please:
1> if I paste my api into the browser, I see that I have several values (clouds, temp, presure…etc)
2> in open visualization suggestion mode, I only have the ID: 804
3> I assume that you have to use Parsing options, to extract alls values to display? but I don’t know the syntax;, possible to explain to me?
Thanks a lot for your help.

API browser return:
{“coord”:{“lon”:3.9036,“lat”:46.9435},“weather”:
[{"id":804,“main”:“Clouds”,“description”:“overcast clouds”,“icon”:“04n”}]
,“base”:“stations”,“main”:{“temp”:277.52,“feels_like”:275.88,“temp_min”:277.52,“temp_max”:279.31,“pressure”:1024,“humidity”:62,“sea_level”:1024,“grnd_level”:943},“visibility”:10000,“wind”:{“speed”:1.91,“deg”:193,“gust”:1.75},“clouds”:{“all”:90},“dt”:1707858114,“sys”:{“type”:2,“id”:2038399,“country”:“FR”,“sunrise”:1707807104,“sunset”:1707843989},“timezone”:3600,“id”:2979009,“name”:“Saint-Just”,“cod”:200}

Visualisation mode and parsing ?

[yosiasz]

Check out transformation Extract Fields for starters

[franck42]

@yosiasz

transformation Extract Fields

Thank’s, I think it’s the TRANSFORM DATA tab?
If yes, I use Filter By name, I don’t see anything here that might look like field values?
debug doesn’t give more info?

special syntaxe for identifier ?

[yosiasz]

from the json you provided, which data points do you want to visualize? Always post clean data please?

{
	"coord": {
		"lon": 3.9036,
		"lat": 46.9435
	},
	"weather": [
		{
			"id": 804,
			"main": "Clouds",
			"description": "overcast clouds",
			"icon": "04n"
		}
	],
	"base": "stations",
	"main": {
		"temp": 277.52,
		"feels_like": 275.88,
		"temp_min": 277.52,
		"temp_max": 279.31,
		"pressure": 1024,
		"humidity": 62,
		"sea_level": 1024,
		"grnd_level": 943
	},
	"visibility": 10000,
	"wind": {
		"speed": 1.91,
		"deg": 193,
		"gust": 1.75
	},
	"clouds": {
		"all": 90
	},
	"dt": 1707858114,
	"sys": {
		"type": 2,
		"id": 2038399,
		"country": "FR",
		"sunrise": 1707807104,
		"sunset": 1707843989
	},
	"timezone": 3600,
	"id": 2979009,
	"name": "Saint-Just",
	"cod": 200
}

[franck42]

yes it is exactly this
But in Source I have not result, only

[yosiasz]

try this

[franck42]

see result with no pars

see result with parsing main. (but if I pars with main.temp, or main.pressure, or adding others objects , propriety .)…no datas displaying

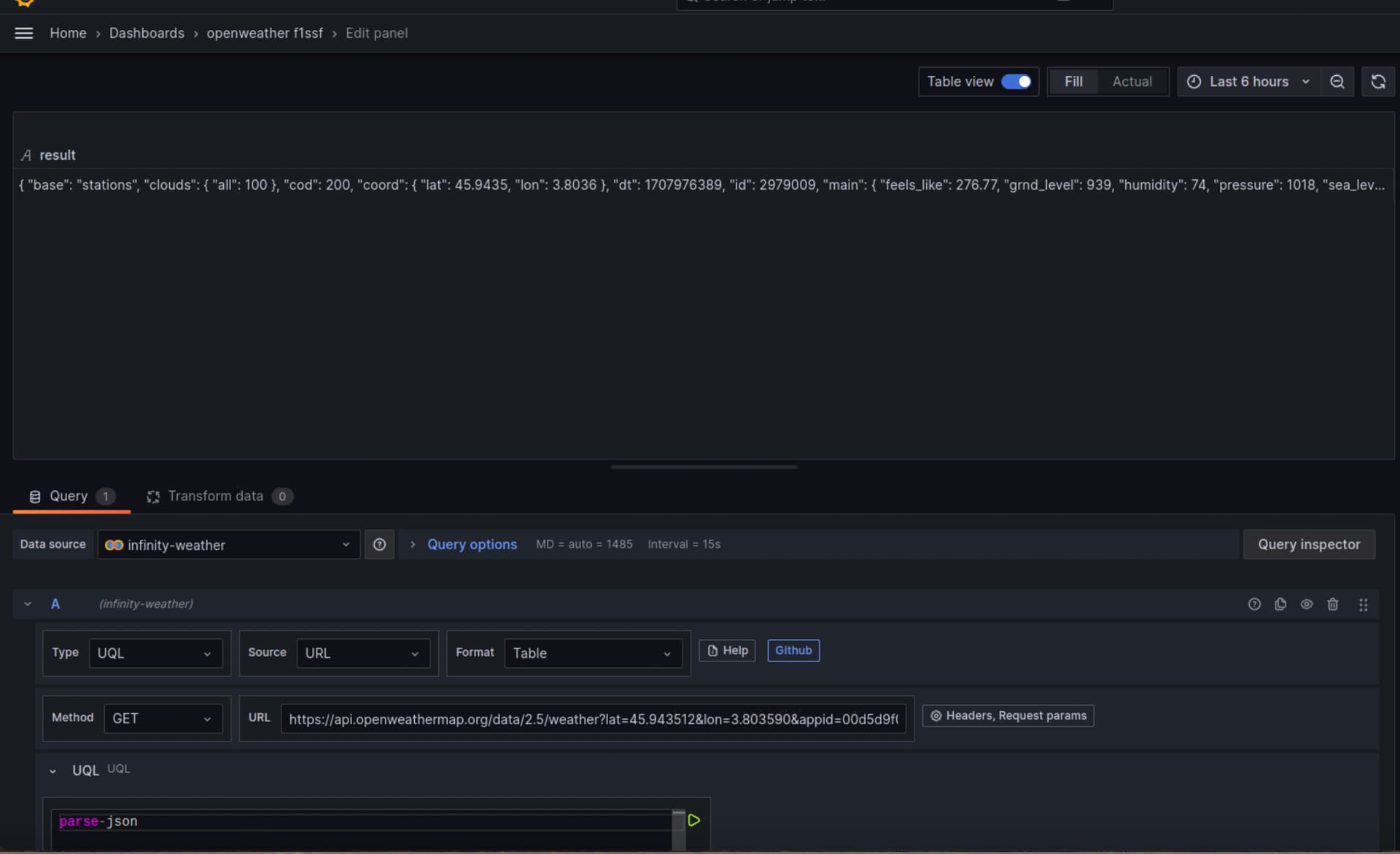

see result with UQL

thank’s for support

[yosiasz]

You forgot the transformation

[franck42]

In transformation, Extract field, source =>> I have not A result.

[yosiasz]

we cant see what you do have

[franck42]

Ok thank you to have try.
I think my problem is in my Grafana, because if I use JSON viewer on line, I can do extract without problems.

[franck42]

you are truly the champion of Grafana…
Oh my god sorry, I’m a beginner, it is Ok now
If I may allow myself a few additional questions:
1> is it possible to choose data?
2> table and geomap modes work, but not time series?
3> How can I convert °kelvin to °Celcius?

[yosiasz]

Time for you to learn jsonata query language which uql nicely implements. Also read docu of infinity about jsonata

Sorting, Grouping and Aggregation · JSONata

Look in this forum for many answers that use jsonata

You are no longer a beginner. Training wheels removed.
