How to create grafana multiple bar chart


im trying to create grafana with multiple bar chart and failed to do so.
my goal is like that -
X-Axis will present test name and Y-Axis the results for the test fir each version.
something like that -
no mater which SQL i used, i failed to get this, any advise / guide will be appreciate.

1 Like

Welcome @eladbren !

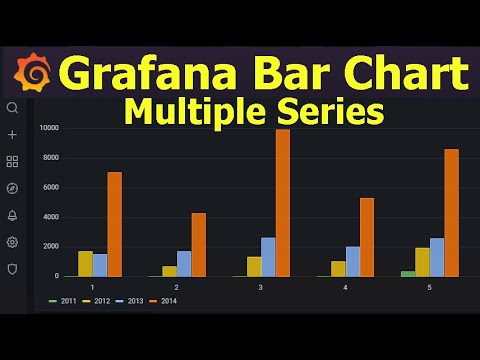

There’s a really great YouTube tutorial that goes over how to create a multi-series Grafana bar chart. In the video he shows you the original source data, what the panel expects, and how to wire things together. Hope this helps

1 Like


What version of grafana are you using?
What data source are you using?
Please share your query?


Version 9.4.7

My data source code is PostgreSQL

And this is my query –

with elad as(

select throughput, version, test_name, gw_ip, gw_name, gw_model,

dense_rank() over( partition by version order by throughput desc)

as “rank” from test_results tr where test_name= ‘waf_krp_https_gen1’


select distinct version, throughput, test_name, gw_ip, gw_name, gw_model

from elad

where rank= 1 and gw_model = ‘X8520’ order by version ASC


What does the result of that query look like in pgadmin?
