I have some problems with building a View with the Discrete Visualization.
Thanks in advance for your help.
-
What Grafana version and what operating system are you using?
9.3.6 -
What are you trying to achieve?
Build a Graph where I can see the different status of a heat pump
Connect values between day change in Discrete plugin
Also the acutal values should be only shown until the actual time -
How are you trying to achieve it?
Build a Dashboard with Discrete panel -
What happened?
First problem is that the values are not connected between day change. First shown data is when the Source InfluxDB receives a new value. One possiblity is of course to write that datapoints each 10min but maybe there is a different/better solution.

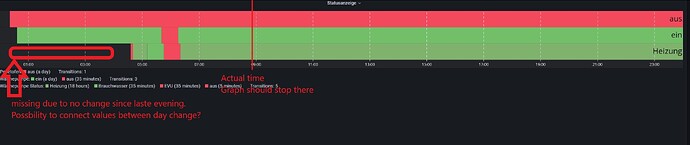

Second problem is that the values are always shown to the end of the day. I want that the values are stopping at the current time. Find attached picture which shows the problem. Actual time was 08:50.
-
Can you copy/paste the configuration(s) that you are having problems with?
{
"id": 18,
"gridPos": {
"h": 8,
"w": 21,
"x": 0,
"y": 16
},
"type": "natel-discrete-panel",
"title": "Statusanzeige",
"datasource": {
"type": "influxdb",
"uid": "805eBRt4z"
},
"backgroundColor": "rgba(128,128,128,0.1)",
"colorMaps": [
{
"$$hashKey": "object:94",
"color": "#CCC",
"text": "N/A"
},
{
"$$hashKey": "object:97",
"color": "#F2495C",
"text": "aus"
},
{
"$$hashKey": "object:100",
"color": "#73BF69",
"text": "ein"
},
{
"$$hashKey": "object:545",
"color": "#73BF69",
"text": "heat"
},
{
"$$hashKey": "object:548",
"color": "#73BF69",
"text": "water"
},
{
"$$hashKey": "object:703",
"color": "#F2495C",
"text": "EVU"
},
{
"$$hashKey": "object:706",
"color": "#73BF69",
"text": "Brauchwasser"
}
],
"crosshairColor": "#8F070C",
"display": "timeline",
"extendLastValue": true,
"highlightOnMouseover": true,
"legendSortBy": "-ms",
"lineColor": "rgba(0,0,0,0.1)",
"metricNameColor": "#000000",
"rangeMaps": [
{
"$$hashKey": "object:71",
"from": "null",
"text": "N/A",
"to": "null"
}
],
"rowHeight": 50,
"showLegend": true,
"showLegendNames": true,
"showLegendTime": true,
"showLegendValues": true,
"showTimeAxis": true,
"showTransitionCount": true,
"targets": [
{
"alias": "Pelletofen",
"datasource": {
"type": "influxdb",
"uid": "805eBRt4z"
},
"groupBy": [],
"measurement": "Pellet_ein",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"value"
],
"type": "field"
}
]
],
"tags": []
},
{
"alias": "Wärmepumpe",
"datasource": {
"type": "influxdb",
"uid": "805eBRt4z"
},
"groupBy": [],
"hide": false,
"measurement": "WP_Status_EVU",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"value"
],
"type": "field"
}
]
],
"tags": []
},
{
"alias": "Wärmepumpe Status",
"datasource": {
"type": "influxdb",
"uid": "805eBRt4z"
},
"groupBy": [],
"hide": false,
"measurement": "ebus.0.ehp.messages.Status.fields.3.value",
"orderByTime": "ASC",
"policy": "default",
"refId": "C",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"value"
],
"type": "field"
}
]
],
"tags": []
}
],
"textSize": 24,
"textSizeTime": 12,
"timeOptions": [
{
"name": "Years",
"value": "years"
},
{
"name": "Months",
"value": "months"
},
{
"name": "Weeks",
"value": "weeks"
},
{
"name": "Days",
"value": "days"
},
{
"name": "Hours",
"value": "hours"
},
{
"name": "Minutes",
"value": "minutes"
},
{
"name": "Seconds",
"value": "seconds"
},
{
"name": "Milliseconds",
"value": "milliseconds"
}
],
"timePrecision": {
"name": "Minutes",
"value": "minutes"
},
"timeTextColor": "#d8d9da",
"units": "short",
"valueMaps": [
{
"$$hashKey": "object:69",
"op": "=",
"text": "ein",
"value": "true"
},
{
"$$hashKey": "object:73",
"op": "=",
"text": "aus",
"value": "false"
},
{
"$$hashKey": "object:75",
"op": "=",
"text": "n/a",
"value": "null"
},
{
"$$hashKey": "object:389",
"op": "=",
"text": "Heizung",
"value": "heat"
},
{
"$$hashKey": "object:391",
"op": "=",
"text": "Brauchwasser",
"value": "water"
},
{
"$$hashKey": "object:393",
"op": "=",
"text": "aus",
"value": "off"
},
{
"$$hashKey": "object:395",
"op": "=",
"text": "EVU",
"value": "EVU Sperrzeit"
}
],
"valueTextColor": "#000000",
"writeLastValue": true,
"expandFromQueryS": 0,
"showDistinctCount": false,
"showLegendPercent": false,
"use12HourClock": false,
"useTimePrecision": false,
"writeAllValues": false,
"writeMetricNames": false
}
