ADAL within a Datasource Plugin

tgg · October 25, 2017, 11:18am

Hello all. I’m a long term .net developer.
I am building my first Datasource plugin for Grafana…so far I can get my plugin in and see the config and query editor.
Now exploring how to authenticate against the datasource with is using ADAL.

Normally I would just do this in .Net:

HttpClient client = HttpClientFactory.Create(new WebRequestHandler(),
new AuthenticationHandler(resource, tenant, aadFormat, appId, appKey));
client.BaseAddress = new Uri(address);

I need the equivalent in Angular so that I can make the same API calls.

I’ve seen the adal.js and adal-angular.js files from Microsoft, that I have seen integrated in a pure web app for angular. However, how would I use the same in a Plugin for Grafana?

Has anyone done this before?

Thanks in advance.

daniellee · October 25, 2017, 11:47am

Don’t know too much about ADAL but here is how I did it for the Azure Monitor data source plugin (no JavaScript involved):

github.com

grafana/azure-monitor-datasource/blob/master/src/plugin.json#L30-L44


"routes": [
  {
    "path": "azuremonitor",
    "method": "GET",
    "url": "https://management.azure.com",
    "tokenAuth": {
      "url": "https://login.microsoftonline.com/{{.JsonData.tenantId}}/oauth2/token",
      "params": {
        "grant_type":  "client_credentials",
        "client_id": "{{.JsonData.clientId}}",
        "client_secret": "{{.SecureJsonData.clientSecret}}",
        "resource": "https://management.azure.com/"
      }
    }
  },

This defines a route in the plugin.json, “azuremonitor”, when this route is activated then it gets a token using the tenantId, the client id and client secret from the data source config. Grafana will automatically fetch a new token when it expires. The user has to choose proxy mode in the data source config for this to work.

tgg · October 25, 2017, 2:49pm

Thanks.
Doesn’t seem to work for me, likely I have something mis-configured.

I have ticked proxy for the http settings.
What URL do I enter in the http seeting, the backend data store that I am trying to access?

I keep getting a 401 no matter the combinations I’ve tried.

Your path says “azuremonitor”, is that detected when you the URL is {grafana_server}/azuremonitor… ?

daniellee · October 26, 2017, 1:57pm

This is a very new feature that we haven’t documented yet (so I will do that in the next week or two).

The grafana backend will try and match a proxy route with “azuremonitor”:. A proxy url looks like this:

http://grafana.staged-by-discourse.com/api/datasources/proxy/72/azuremonitor/subscriptions/9935389e-9122-4ef.....

Grafana will strip off http://grafana.staged-by-discourse.com/api/datasources/proxy/72/azuremonitor and add in https://management.azure.com from the url field and send the request on to:

https://management.azure.com/subscriptions/9935389e-9122-4ef.....

At the same time, it will fetch a token from https://login.microsoftonline.com.

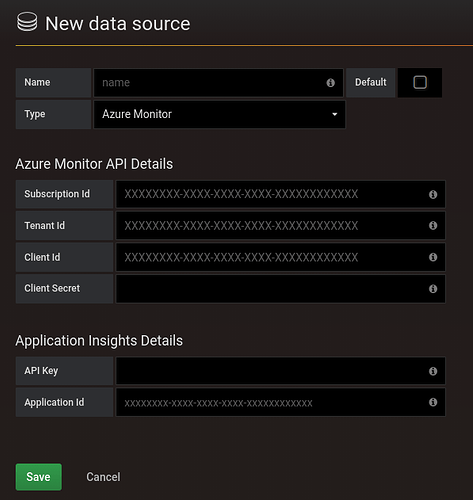

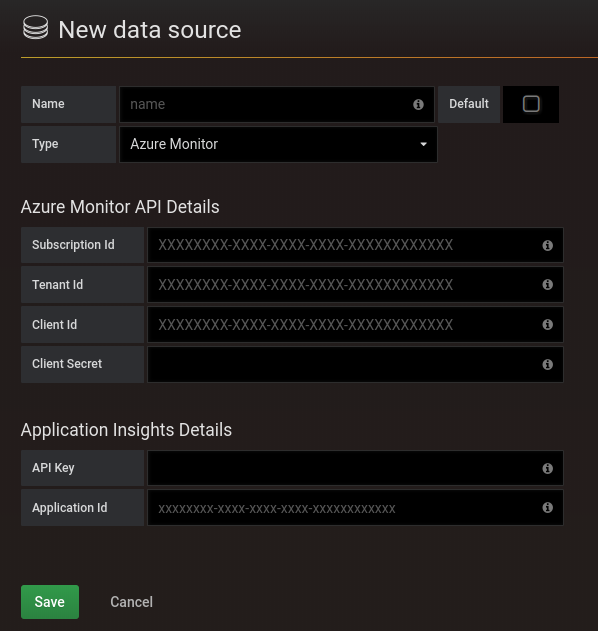

This is what the config page looks like and it is these values (tenantId, clientId etc.) that are used in the route spec in the plugin.json file:

tgg · October 26, 2017, 2:46pm

Thanks for you help.
How do I set up the data source as a proxy route then? Excuse my lack of knowledge.

I though setting the URL and setting the type to “Proxy” was how but I don’t see those options in your data source configuration?

daniellee · October 26, 2017, 3:06pm

For the Azure Monitor plugin, it is hardcoded to Proxy. Direct does not make sense for a cloud service. So you are on the right track.

tgg · October 30, 2017, 1:24pm

Got it working (at last). Now behaving as I was expecting.
Thanks for your help!

tgg · October 31, 2017, 2:46pm

I have everything working as expected now except for the configuration.

If I add this to plugin.json

    "tokenAuth": {
        "url": "https://login.windows.net/{{.JsonData.tenant}}/oauth2/token",

Then the {{.JsonData.tenant}} is not being resolved, it is taken as the literal string.
Is there a setting that needs to be enabled to allow this to resolve?

Everything works hardcoded so this is the last piece of the puzzle.

tgg · November 1, 2017, 8:22am

I updated to v4.6.0 and that has fixed the issue.

daniellee · November 1, 2017, 8:33am

Oh, sorry. Forgot to say that this is a totally new feature that we built for the Azure plugin and that you needed 4.6.

tgg · November 30, 2017, 10:37am

Is it possible for the url to be dynamic from configuration? It doesn’t appear to be working.

“routes”: [{
“path”: “mycustompath”,
“method”: “GET”,
“url”: “https://{{ .JsonData.customUrl }}”,
“tokenAuth”: {
“url”: “https://login.windows.net/{{ .JsonData.tenant }}/oauth2/token”,
“params”: {
“grant_type”: “client_credentials”,
“client_id”: “{{ .JsonData.applicationid }}”,
“client_secret”: “{{ .JsonData.applicationkey }}”,
“resource”: “{{ .JsonData.resource }}”
}
}

daniellee · November 30, 2017, 10:52am

No, my first thought is that could be a security hole. We don’t want frontend code interfering here.

You could have multiple routes and switch between those on the frontend.

antmtn · April 20, 2018, 8:46am

Hi @daniellee, i want to setup grafana azure monitor plugin on Azure Stack environemt, so i modify some code, but it does’t work, so how can i add azuerstack route?

Error Log:
angular.js:12837 GET angular.js:12837 GET http://grafana.staged-by-discourse.com/api/datasources/proxy/4/azurestack/subscriptions/84c670db-eab5-466e-9b96-9b2c3ed9c7f5/resourceGroups?api-version=2018-01-01 502 (Bad Gateway)

daniellee · April 23, 2018, 1:55pm

@antmtn hard to say with so little detail.
