How to Extract a Value from JSON API Response at a Given Index?

Grafana Dashboards
1

Hello,

I’m working with a JSON API and need some guidance on how to extract a specific value from the response data at a particular index. The API returns a JSON array, and I’d like to retrieve the value at a specific position within that array. I have attached sample data.

I am using Gauge and see Value options-> calculations-> defined values(Last, first, min, max, etc.) Is there a way to get a custom selection?

I tried transformation, however did not work.

Could someone please provide me with an example of how can I achieve this?

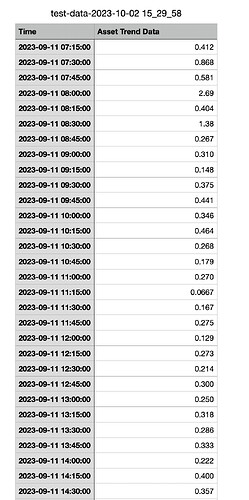

image818×1638 192 KB

image798×968 43.9 KB

2

Would really help if you provided a sample json data (obfuscated of course) and point us which data you want to extract

3

Hi Yosiasz,
Certainly. My objective is to determine the 95th percentile. To achieve this, I plan to follow these steps: first, sort the data. Then, I’ll calculate the index of the 95th percentile using the formula: total number of records * 0.95 → Round(result). Once I have this index, I intend to retrieve the corresponding Trend data value for further analysis.

Not allowing me to attach any JSON. Sharing a screenshot.

image1258×1740 225 KB

1 Like
4

cool, can you please post the data as inline json as follows

[
{
 "target": "Asset Trend Data",
"datapoints": [
   [ 237450.63, 16957098000000]
]
}
]

Also what do you mean by "total number of records * 0.95 " which total number of records is that? count of datapoints?

this will allow us to help you.

5

Yes, the total count of data points.
[
{
“target”: “Asset Trend Data”,
“datapoints”: [
[
237450.63636363635,
1695709800000
],
[
236870.4666668574,
1695710700000
],
[
236118.125,
1695711600000
],
[
235238.60104141236,
1695712500000
],
[
234529.8,
1695713400000
],
[
233638.875,
1695714300000
],
[
233025.4375,
1695715200000
],
[
232167.88888888888,
1695716100000
],
[
231426.1,
1695717000000
],
[
230834.2142857143,
1695717900000
],
[
229779.44444444444,
1695718800000
],
[
229266.66493055556,
1695719700000
],
[
228398.11111111112,
1695720600000
],
[
227930.63494335522,
1695721500000
],
[
227231.42857142858,
1695722400000
],
[
227255.49999961854,
1695723300000
],
[
226546.6,
1695724200000
],
[
226393.11580871133,
1695725100000
],
[
225788.5,
1695726000000
],
[
225377.625,
1695726900000
],
[
224893.18181818182,
1695727800000
],
[
224353.0,
1695728700000
],
[
223749.4,
1695729600000
],
[
223346.63636363635,
1695730500000
],
[
222852.22222222222,
1695731400000
],
[
222372.68503279434,
1695732300000
],
[
221955.88888888888,
1695733200000
],
[
221451.25130208334,
1695734100000
],
[
220863.99999976158,
1695735000000
],
[
220562.88888888888,
1695735900000
],
[
219816.5372590285,
1695736800000
],
[
219714.5624999404,
1695737700000
],
[
218963.125,
1695738600000
],
[
218466.46666666667,
1695739500000
],
[
217964.0,
1695740400000
],
[
217345.4,
1695741300000
],
[
217045.20970364622,
1695742200000
],
[
216591.55555555556,
1695743100000
],
[
215966.5,
1695744000000
],
[
215731.94209547603,
1695744900000
],
[
215064.49843711854,
1695745800000
],
[
214604.10156269075,
1695746700000
],
[
214225.49999976158,
1695747600000
],
[
213588.59999961854,
1695748500000
],
[
212999.89999961853,
1695749400000
],
[
212818.5989583969,
1695750300000
],
[
212125.1,
1695751200000
],
[
211723.63494283502,
1695752100000
],
[
211093.7142857143,
1695753000000
],
[
210825.125,
1695753900000
],
[
210135.539663755,
1695754800000
],
[
209815.46666666667,
1695755700000
],
[
209299.66666666666,
1695756600000
],
[
208639.4365233183,
1695757500000
],
[
208404.5,
1695758400000
],
[
207800.11111111112,
1695759300000
],
[
207152.375,
1695760200000
],
[
207086.0,
1695761100000
],
[
206483.11111111112,
1695762000000
],
[
205967.6923076923,
1695762900000
],
[
205529.66666666666,
1695763800000
],
[
204995.11111111112,
1695764700000
],
[
204809.8125,
1695765600000
],
[
205802.08333333334,
1695766500000
],
[
207371.08333333334,
1695767400000
],
[
207103.3759766817,
1695768300000
],
[
206703.33333333334,
1695769200000
],
[
206134.625,
1695770100000
],
[
205685.6923076923,
1695771000000
],
[
205232.0,
1695771900000
],
[
204684.8124998808,
1695772800000
],
[
204307.53437512714,
1695773700000
],
[
203865.75,
1695774600000
],
[
203503.5625,
1695775500000
],
[
203152.36363636365,
1695776400000
],
[
202693.92307692306,
1695777300000
],
[
202353.126953125,
1695778200000
],
[
201925.88888888888,
1695779100000
],
[
201453.83463509878,
1695780000000
],
[
201092.49902367592,
1695780900000
],
[
200681.2857142857,
1695781800000
],
[
199840.58333333334,
1695782700000
],
[
199693.00183829138,
1695783600000
],
[
199117.0,
1695784500000
],
[
198520.8134765625,
1695785400000
],
[
198281.0,
1695786300000
],
[
197666.1,
1695787200000
],
[
197122.9375,
1695788100000
],
[
196791.0,
1695789000000
],
[
196139.27272727274,
1695789900000
],
[
195783.86666666667,
1695790800000
],
[
195427.88888888888,
1695791700000
],
[
194740.99869823456,
1695792600000
],
[
194627.0625000596,
1695793500000
],
[
193877.375,
1695794400000
],
[
193425.9990234375,
1695795300000
]
]
}
]

1 Like
6

Check this out.
https://try.jsonata.org/PRD1JWuT9
you can use jsonata for counting datapoints using infinity plugin

(
    $round($count($.datapoints) * 0.95);
)

image875×370 21.9 KB

7

Oh ok.

Where do we add $round($count($.datapoints) * 0.95); in the Grafana dashboard? Can you please share further details please?

8

You can read the docu here

https://sriramajeyam.com/grafana-infinity-datasource/

Using uql
https://sriramajeyam.com/grafana-infinity-datasource/docs/uql

9

Thank you, Yosiasz!
Have another question. With infinity, I have a different structure of JSON and while I was trying to simply project the data somehow time is coming NaN. Any idea?

image2214×1288 168 KB

{
“data”: [
{
“time”: “1696630266638”,
“time_created”: “1696630297000”
},
{
“time”: “1696630266644”,
“time_created”: “1696630297000”
},
{
“time”: “1696630266644”,
“time_created”: “1696630297000”
}]}

10

Copy that new json structurw to

https://try.jsonata.org/

And play with it :fish: when you are stuck post back.

11

Sure, Thank you for your quick support!

1 Like
12

Also infinity has functions that deal with time you can use to convert it to whatever datetime format you want

13

Thank you. UQL I don’t see an option for column format, however, it works fine with tounixtime(“time”).

1 Like
