How can I sum the values I get from InfluxDB and display them next to the individual entries?

Grafana InfluxDB
1

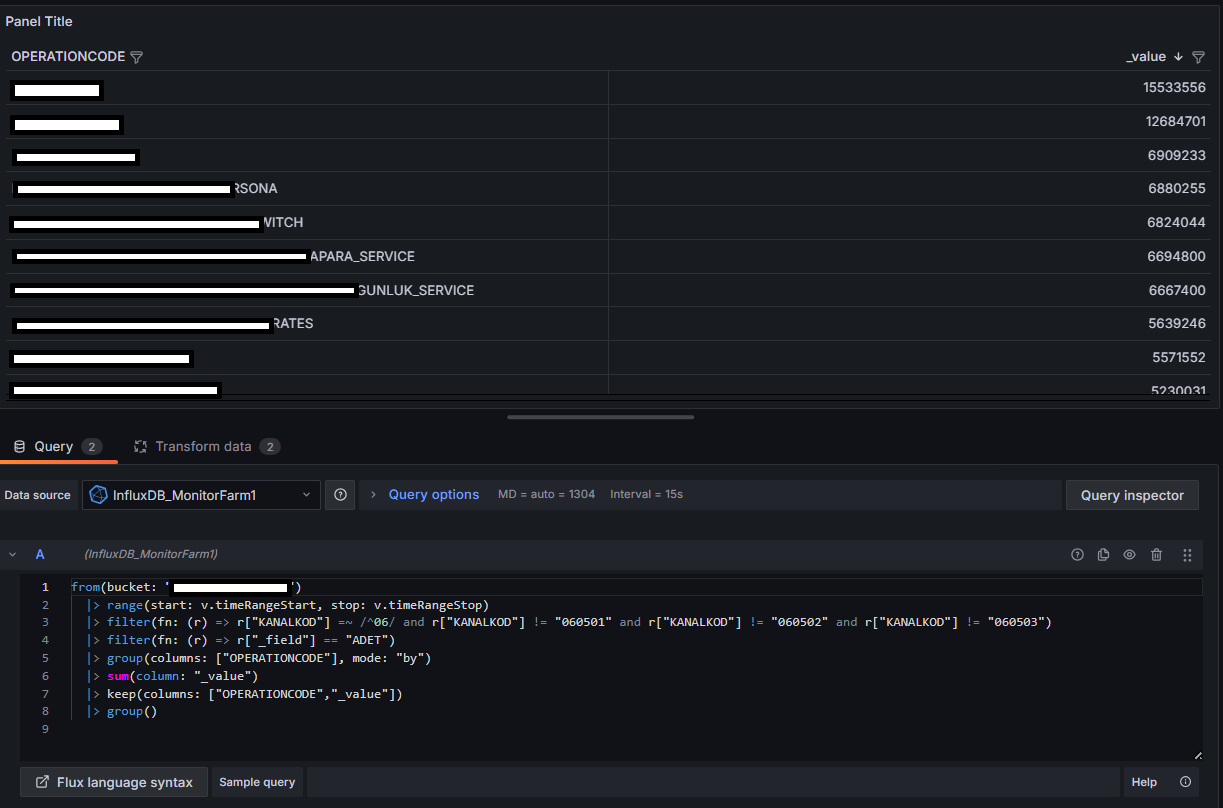

Hello everyone, This might be a beginner-level question, but I just haven’t been able to figure it out. I’m sharing the query I wrote for InfluxDB and its output in the visual. I want to sum all the values and add that total next to each operation. How can I do this?

Capture
Capture1223×808 47.8 KB

Expected outpup:

Picture1302×121 1.94 KB

Regards,

2

you can consider this solution to reslolve your issue
Step 1. Create Bucket
Step 2. line protocol format for dummy data
weather,sensor=s1 temperature=20,humidity=40
weather,sensor=s1 temperature=21,humidity=42
weather,sensor=s1 temperature=22,humidity=43
weather,sensor=s1 temperature=23,humidity=45

Step 3. Integrate influxdb with grafana dashboard
Step 4.write the quert to find the total and show in different colum

// Step 1: Get pivoted weather data for humidity and temperature
data = from(bucket: "Dataabsolute")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) =>
    r._measurement == "weather" and
    r.sensor == "s1" and
    (r._field == "temperature" or r._field == "humidity")
  )
  |> pivot(rowKey: ["_time"], columnKey: ["_field"], valueColumn: "_value")

// Step 2: Calculate the total humidity over the range and assign dummy join key
humiditySum = from(bucket: "Dataabsolute")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) =>
    r._measurement == "weather" and
    r.sensor == "s1" and
    r._field == "humidity"
  )
  |> sum(column: "_value")
  |> map(fn: (r) => ({join_key: "1", humidity_sum: r._value}))

// Step 3: Add dummy join key to pivoted data
dataWithKey = data
  |> map(fn: (r) => ({r with join_key: "1"}))

// Step 4: Join on dummy key to get humidity_sum into every row
join(
  tables: {d: dataWithKey, s: humiditySum},
  on: ["join_key"]
)
|> map(fn: (r) => ({
  _time: r._time,

  humidity: r.humidity,
  humidity_sum: r.humidity_sum
}))

Final output Look Like this

image1114×349 5.33 KB

3

Hello @ataliponder,
Just checking in—did this solution resolve your issue, or are you still experiencing the same problem?

4

Thank you for your efforts. However, I couldn’t implement the query you wrote to my data.

from(bucket: “bucket123”)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“KANALKOD”] =~ /^06/ and r[“KANALKOD”] != “060501” and r[“KANALKOD”] != “060502” and r[“KANALKOD”] != “060503”)
|> filter(fn: (r) => r[“_field”] == “ADET”)
|> group(columns: [“OPERATIONCODE”], mode: “by”)
|> sum(column: “_value”)
|> keep(columns: [“OPERATIONCODE”,“_value”])
|> group()

This is my only query and result above.
