Grafana , vsphere, network

Grafana InfluxDB
1

Hello ,

hope you are all well .

I use Grafana 9 , Telegraf and InfluxDB v2.0 to collect matric from vsphere environment.
End is work fine but I have en issues to create variables for network interface - vmnic .
I create several variables.

First variables is for vcenter :

from(bucket: v.defaultBucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_cpu”)
|> keep(columns: [“vcenter”])
|> distinct(column: “vcenter”)
|> group()

Second variables for cluster :

from(bucket: v.defaultBucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_cpu”)
|> filter(fn: (r) => r[“vcenter”] == “${vcenter}”)
|> keep(columns: [“clustername”])
|> distinct(column: “clustername”)
|> group()

third variables for esxi host
from(bucket: v.defaultBucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_net”)
|> filter(fn: (r) => r[“clustername”] == “${clustername}”)
|> keep(columns: [“esxhostname”])
|> distinct(column: “esxhostname”)
|> group()

and 4th variables for vmnic .

from(bucket: v.defaultBucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_net”)
|> filter(fn: (r) => r[“esxhostname”] == “${esxhostname}”)
|> keep(columns: [“interface”])
|> distinct(column: “interface”)
|> group()

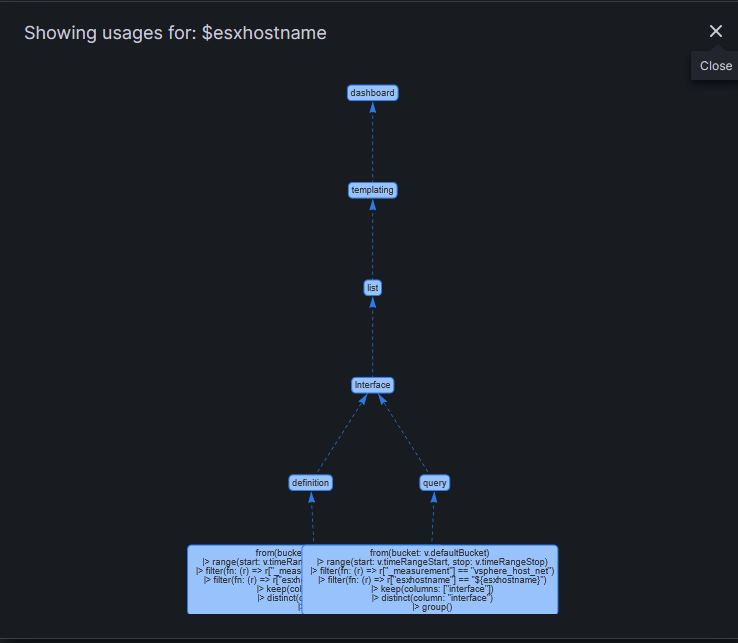

image1639×585 60 KB

image738×643 18.1 KB

My Issues is that last variable is not working , It not return any interface , but when I try same query in script editor on Influxd I get result , return all vmnics
|> keep(columns: [“interface”])
|> distinct(column: “interface”)
|> group()

I can’t seem to connect it properly .Does any had similar issues ?

2

it seems like there might be an error on it?

3

yes, but I can not figure it what is the error

4

what do you see when you hover over that icon :warning: or open that variable and see if it shows you the error.

5

Can you run the query in Explore and get returns?

6

hi yosiasz
here what it says when i go over the icon

7

hi jasonmallory,

I try that , but query is a little bit different ,because in query I set value for vcenter ,cluster and esxi host.
So it’s look like this

image1569×705 56.8 KB

8

this should be

|> filter(fn: (r) => r[“esxhostname”] == “${esxi}”)

then dependency are ok

image746×624 10.9 KB

but still last variable for interfaces doesn’t return values

9

Are you sure that is the proper variable name?

10

no , it should be |> filter(fn: (r) => r[“esxhostname”] == “${esxi}”)

now in variable I have to choose vmnic , but in graph query return some crazy values ,

from(bucket: v.defaultBucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_net”)
|> filter(fn: (r) => r[“_field”] == “bytesRx_average”)
|> filter(fn: (r) => r[“esxhostname”] =~ /${esxi:regex}/)
|> group(columns: [“_field”])
|> aggregateWindow(every: v.windowPeriod, fn: mean, createEmpty: false)
|> yield(name: “mean”)

11

We cant your screen to see the crazy stuff :laughing:

12

vmnic is off, so there should be no traffic, it should return zero

image1922×835 121 KB

13

what happens if you ran the same identical query on influxdb itself now that you have corrected the $esxi parameter

14

image1610×243 1.38 KB

the query looks a little different. I manually set the values in the query
which I have variables in graphana

from(bucket: “vmware”)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) => r[“vcenter”] == “my vCSA”)
|> filter(fn: (r) => r[“clustername”] == “MyCluster”)
|> filter(fn: (r) => r[“esxhostname”] == “myHost”)
|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_net”)
|> filter(fn: (r) => r[“_field”] == “bytesRx_average”)
|> filter(fn: (r) => r[“interface”] == “vmnic0”)
|> aggregateWindow(every: v.windowPeriod, fn: mean, createEmpty: false)
|> yield(name: “mean”)

15

it actually looks very different from your query in grafana


these exists in your grafana query

|> filter(fn: (r) => r[“_measurement”] == “vsphere_host_net”)
|> filter(fn: (r) => r[“_field”] == “bytesRx_average”)
|> filter(fn: (r) => r[“esxhostname”] == “myHost”)

These do not

|> filter(fn: (r) => r[“vcenter”] == “my vCSA”)
|> filter(fn: (r) => r[“clustername”] == “MyCluster”)
|> filter(fn: (r) => r[“interface”] == “vmnic0”)
16

yes because I have variables

image1342×61 7.92 KB

17

are the variables used to filter other variables or to be used in the query?

18

Filter for other variables. look at my first post . First variable is for vcenter, second for cluster ,…

19

But you dont use a lot of those: center, cluster, interface in your final query hence the issue you are seeing. I believe it is working as intended unless you put the other variables in the last query

20

how to put other variables in last query?.
