Can't find the "include images" checkbox for Alert images

[wonmin920116]

I installed grafana-image-renderer, but I can’t enable the “include images” checkbox (it’s not visible in grafana).

I also checked the logs by referring to this URL (Slack alerts do not include image), but there seems to be no problem generating images.

The “Include images” checkbox is still nowhere to be found in my Grafana Contact points.
How can I send an image with the alarm?

• Grafana: 9.5.2

• setting

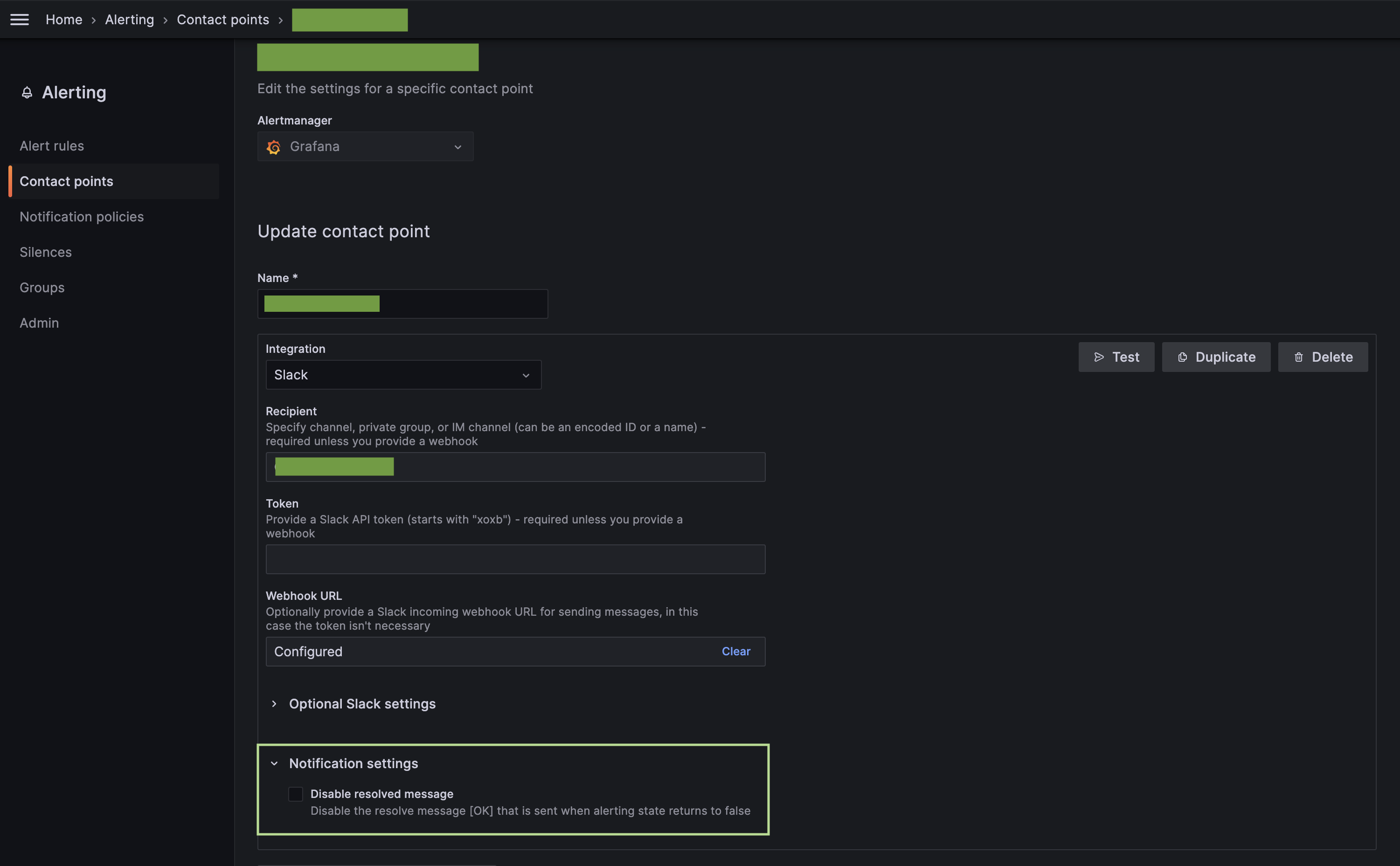

• contact point




• ngalert.image logs ( k logs -f grafana-898d9f959-qmmxl | grep ngalert.image )
  logger=ngalert.image rule_uid=e655a13b-0ce8-4560-ba2a-f1b7d52e9383 org_id=1 dashboard=b94d4726-c620-4719-bf46-1b102d2bcf65 panel=172 t=2023-06-26T12:04:04.961371394Z level=debug msg=“Requesting screenshot”
  logger=ngalert.image rule_uid=e655a13b-0ce8-4560-ba2a-f1b7d52e9383 org_id=1 dashboard=b94d4726-c620-4719-bf46-1b102d2bcf65 panel=172 t=2023-06-26T12:04:09.336137696Z level=debug msg=“Took screenshot” path=/var/lib/grafana/png/SRmESxcnIEJxSQdH7jBI.png
  logger=ngalert.image rule_uid=e655a13b-0ce8-4560-ba2a-f1b7d52e9383 org_id=1 dashboard=b94d4726-c620-4719-bf46-1b102d2bcf65 panel=172 t=2023-06-26T12:04:09.337526247Z level=debug msg=“Saved image” token=ce797a55-b84f-4ae9-a678-47e1f602f564

• rendering log (k logs -f grafana-898d9f959-qmmxl | grep rendering)
  logger=rendering renderer=http t=2023-06-26T12:04:04.96945421Z level=info msg=Rendering path=“d-solo/b94d4726-c620-4719-bf46-1b102d2bcf65/monito?from=now-1h&orgId=1&panelId=172&to=now”
  ger=rendering renderer=http t=2023-06-26T12:04:04.974387655Z level=debug msg=“calling remote rendering service” url=“http://grafana-image-renderer.monitoring:8081/render?deviceScaleFactor=1.000000&domain=grafana.monitoring&encoding=&height=500&renderKey=Vo4xvYGC5shKk3XbN095BGRQqoVIU16r&timeout=30&timezone=&url=http%3A%2F%2Fgrafana.monitoring%3A80%2Fd-solo%2Fb94d4726-c620-4719-bf46-1b102d2bcf65%2Fmonito%3Ffrom%3Dnow-1h%26orgId%3D1%26panelId%3D172%26to%3Dnow%26render%3D1&width=1000”

[wonmin920116]

I’ll answer for myself.

1. Why there is no Include Image
   For Grafana 9.5 and later, simply add the following settings to your config file (e.g. grafana.ini).
   No need to look for the button.

unified_alerting.screenshots:
    capture: true

2. Why are images missing from Slack messages?
   Documentation: Use images in notifications | Grafana documentation
   This article had the answer.
   If it’s Upload from disk, need to use a slack bot token,
   If it’s from cloud storage (S3), need to use a Webhook.
   I used a webhook while using disk, which is why the message didn’t have an image attached.

This is now fixed.
I hope someone can refer to my post.

[anasgharsa]

hello @wonmin920116, after adding the 2 line in the grafana.ini file, still don’t see any include image in grafana!! how did you resolve that ?

[eb1247776995]

hello , I have a same problem , how did you resolve that ? any ideas… plz

[anasgharsa]

there is no solution and no one knows anything, u are wasting ur time here. and the documentations doesn’t explain anything
