Show "no data" as 0 with multiple time series

Grafana Prometheus
1

  • What Grafana version and what operating system are you using?
    10.2.0

  • What are you trying to achieve?
    I have some SNMP data in Prometheus that sometimes returns “no data” for the up metric and I want to count those as 0 instead, to visualize in Grafana stat panel.

  • How are you trying to achieve it?
    For a single time series I can achieve this by adding OR on() vector(0) to the end of the PromQL query. But this doesn’t work when the query returns multiple series.

  • What happened?
    Here’s an example stat panel that should show 1 all the time, but it’s flapping to 0 when the target reports no data. I’ve tried playing around with lots of different query options, but I’m out of ideas.

image1826×1194 178 KB

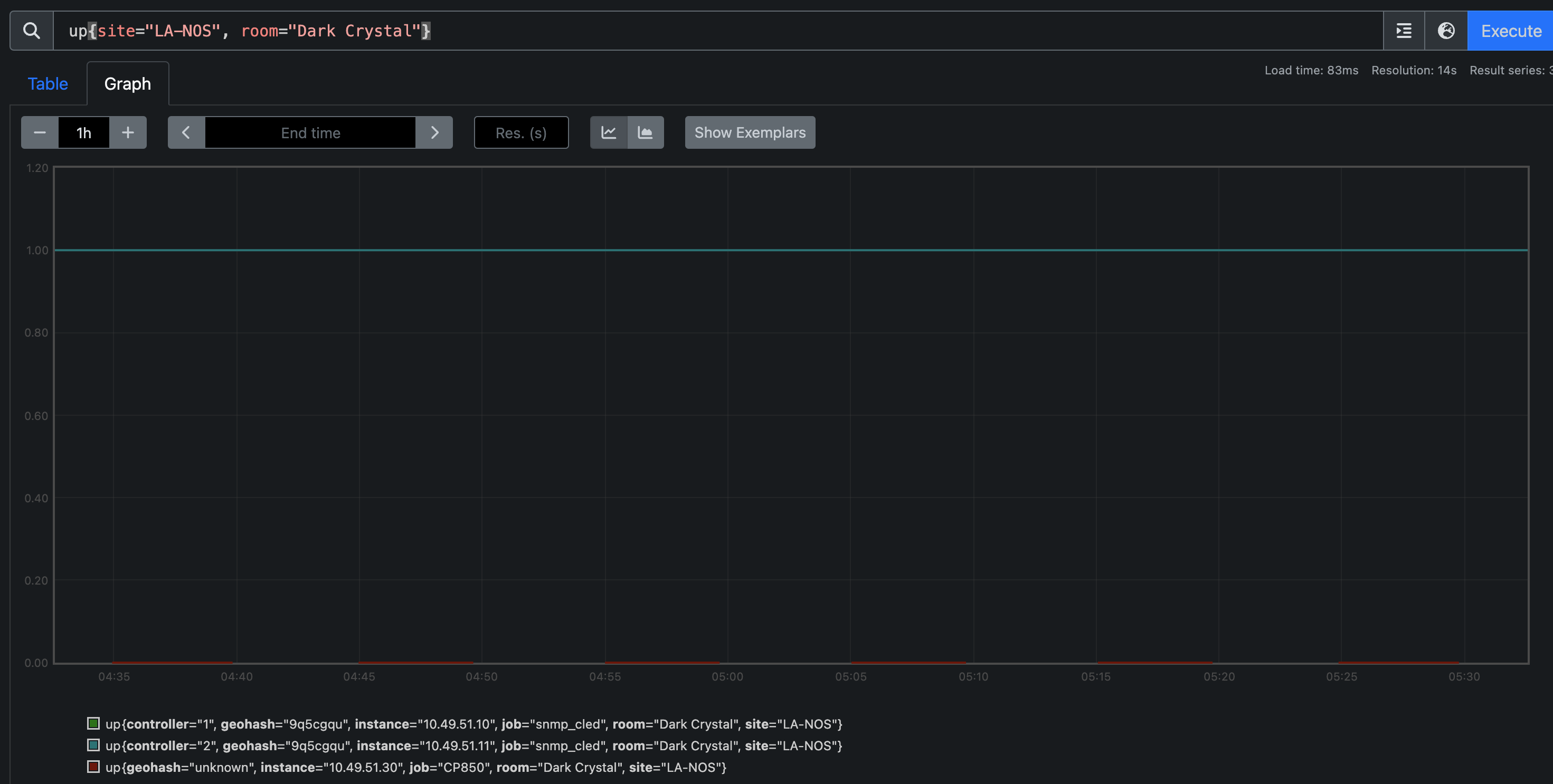

This is how the raw data looks in Prometheus. Of these 3 series, 2 are always up and the other one flaps between 0 and “no data”.

image2942×1486 263 KB

1 Like
2

Logically it should be ** or on() group_left vector(0), but grouping is not supported for set operators.
