Hello friends,
I’m using Grafana v10.3.3 on Windows and getting data from an InfluxDB.

My database stores an application login history data and I want to show it in grafana classified in three groups by hour range. 00:00 - 8:30am, 8:30am - 11:30am and 11:30am - 2:00pm) something like this:

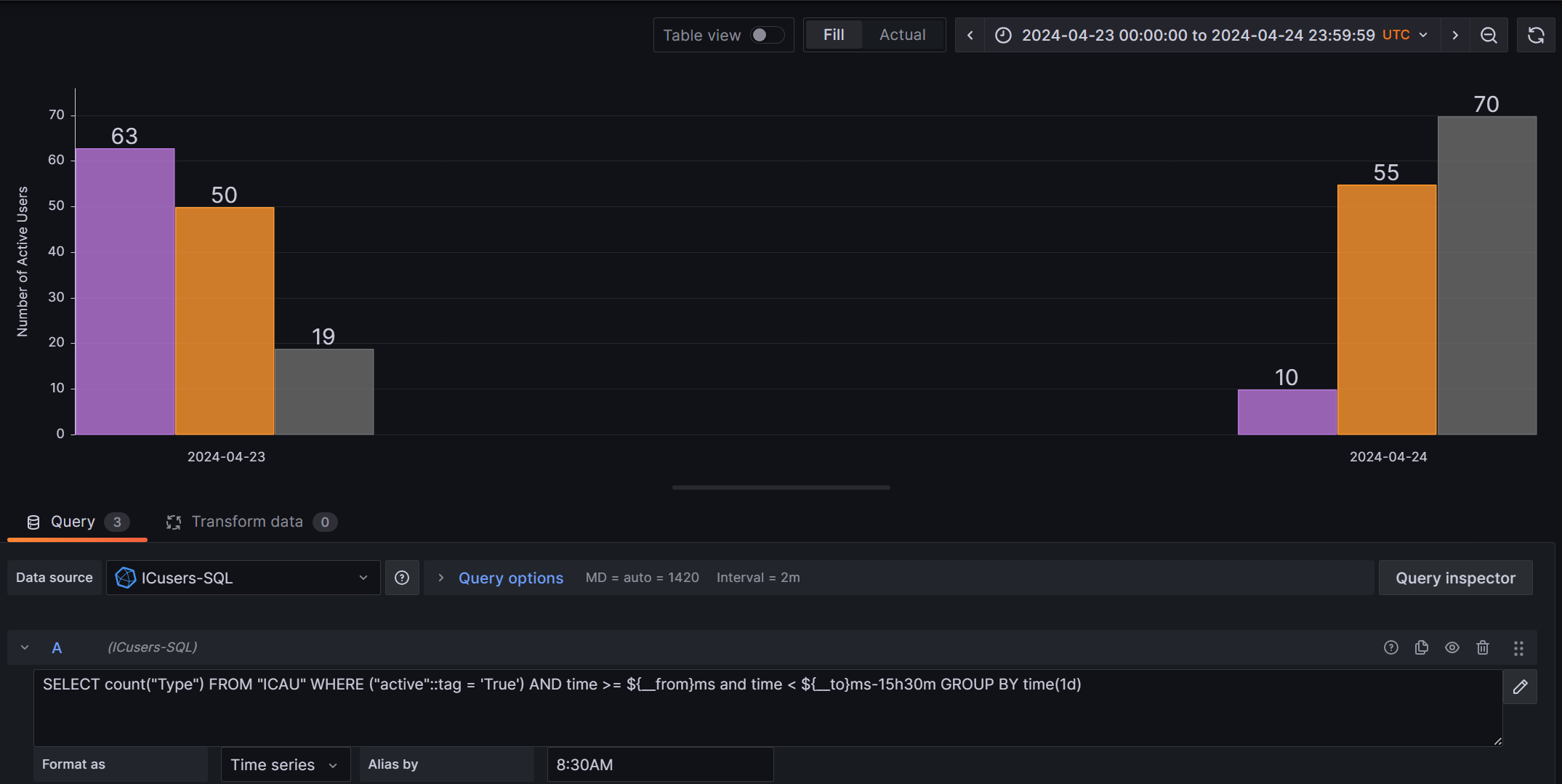

image1114×675 28.3 KB

I used this below query in the screenshot above
SELECT count(“Type”) FROM “ICAU” WHERE (“active”::tag = ‘True’) AND time >= ${__from}ms and time < ${__to}ms-15h30m GROUP BY time(1d)
and I used three queries in the bart chart graph with different time range to show what I want.

Issue: The query above works only with one day range selected, if I choose a range date for more than one day it does not work because the two vars ${__from} and ${__to} takes the two days range to do the calculation and then the query shows the sum of the values of the two days in that hour range. Example below

image2149×1079 152 KB

I have tried:

  1. Transform Data → Filter data by values: This I can’t figure out how to set the range since it does note have the option.
  2. Do a subquery to get the data by date and filtered by hour range but grafana throws error

What I want to achieve is to show the data grouped by hour range when any date range is selected.

Any ideas please?

2

Hi @joelhdo and welcome to the Grafana forum.

So as you correctly noted, the queries you wrote do not work for a range longer than one day. I am not even sure this is possible using InfluxQL.

Have you considered using Flux or SQL instead of InfluxQL? In Flux and SQL, I created queries that do an aggregation by the hour of the day (i.e. 24 bars representing 24 hours). Maybe you could modify these queries to reflect the 3 bin sizes that you specified (00:00 - 8:30am, 8:30am - 11:30am and 11:30am - 2:00pm)?

Here’s a blog post comparing the 3 languages. Here are the two bar charts that “bin by the hour of the day” and will change based on the Time Picker (7 days, 30 days, 6 months, 1 year, etc.)

Flux

SQL

1 Like
3

Hey @grant2

I appreciate your answer. I followed your suggestion to try with Flux, I did not get it done not because is not possible, it was because I’m not familiar with Flux, this is what I got so far:

image2496×1412 279 KB

Using this:

*import "date"*
*import "strings"*
*from(bucket:"intellichief")*
*    |> range(start: v.timeRangeStart, stop: v.timeRangeStop)*
*    |> filter(fn: (r) => r["_measurement"] == "ICAU")*
*    |> filter(fn: (r) => r["_field"] == "Type")*
*    |> filter(fn: (r) => date.hour(t: r["_time"]) >= 0 and date.hour(t: r["_time"]) <= 8)*
*    |> aggregateWindow(every: 1d, fn:count, createEmpty: false)*

Workaround: However I did find a workaround and I will see the behavior in the next couple of days. I owned the data base so I extracted the hour and minute value, concatenated them in a new column in the measurement and then filter the values between the range I’m expecting to graph in my query. I’ll see how it works.

Thank you so much!
