Hello, I have the following problem when collecting data with OTEL from my application that runs on Tomcat.
I see the following error in the catalina.out logs
[otel.javaagent 2024-04-28 19:57:59:494 -0300] [OkHttp http://10.250.2.89:4318/...] WARN io.opentelemetry.exporter.internal.http.HttpExporter - Failed to export metrics. Server responded with HTTP status code 404. Error message: Unable to parse response body, HTTP status message: Not Found

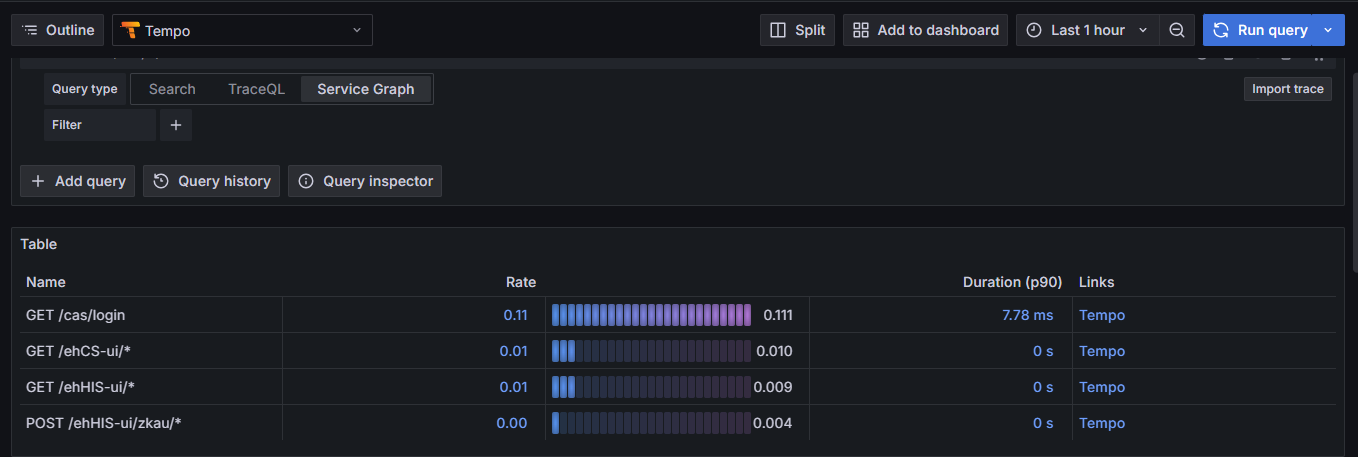

The strange thing is that I see data in “grafana” but not much else
Additionally I see that the container “tempo_k6-tracing_1” fails
k6-tracing_1 | time="2024-04-28T22:58:34Z" level=error msg="GoError: The moduleSpecifier \"https://jslib.k6.io/k6-utils/1.2.0/index.js\" couldn't be retrieved from the resolved url \"https://jslib.k6.io/k6-utils/1.2.0/index.js\". Error : \"Get \"https://jslib.k6.io/k6-utils/1.2.0/index.js\": dial tcp 3.162.125.16:443: i/o timeout\"\n\tat go.k6.io/k6/js.(*requireImpl).require-fm (native)\n\tat file:///example-script.js:3:0(38)\n" hint="script exception"
tempo_k6-tracing_1 exited with code 107
tempo_1 | level=info ts=2024-04-28T22:58:45.760393023Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | level=info ts=2024-04-28T22:59:00.759549133Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | level=info ts=2024-04-28T22:59:15.761717937Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | level=info ts=2024-04-28T22:59:30.762478344Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
k6-tracing_1 | time="2024-04-28T22:59:36Z" level=error msg="GoError: The moduleSpecifier \"https://jslib.k6.io/k6-utils/1.2.0/index.js\" couldn't be retrieved from the resolved url \"https://jslib.k6.io/k6-utils/1.2.0/index.js\". Error : \"Get \"https://jslib.k6.io/k6-utils/1.2.0/index.js\": dial tcp 3.162.125.117:443: i/o timeout\"\n\tat go.k6.io/k6/js.(*requireImpl).require-fm (native)\n\tat file:///example-script.js:3:0(38)\n" hint="script exception"
tempo_k6-tracing_1 exited with code 107
tempo_1 | level=info ts=2024-04-28T22:59:45.760319402Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | level=info ts=2024-04-28T23:00:00.761664776Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | 2024/04/28 23:00:06 http: superfluous response.WriteHeader call from github.com/opentracing-contrib/go-stdlib/nethttp.(*statusCodeTracker).WriteHeader (status-code-tracker.go:17)
tempo_1 | level=info ts=2024-04-28T23:00:15.761191871Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
tempo_1 | level=info ts=2024-04-28T23:00:30.762008437Z caller=registry.go:232 tenant=single-tenant msg="collecting metrics" active_series=938
Conf tempo:
stream_over_http_enabled: true
server:
http_listen_port: 3200
log_level: info
grpc_server_max_recv_msg_size: 1.572864e+07
grpc_server_max_send_msg_size: 1.572864e+07
query_frontend:
search:
duration_slo: 5s
throughput_bytes_slo: 1.073741824e+09
trace_by_id:
duration_slo: 5s
distributor:
receivers: # this configuration will listen on all ports and protocols that tempo is capable of.
jaeger: # the receives all come from the OpenTelemetry collector. more configuration information can
protocols: # be found there: https://github.com/open-telemetry/opentelemetry-collector/tree/main/receiver
thrift_http: #
grpc: # for a production deployment you should only enable the receivers you need!
thrift_binary:
thrift_compact:
zipkin:
otlp:
protocols:
http:
grpc:
opencensus:
ingester:
max_block_duration: 5m # cut the headblock when this much time passes. this is being set for demo purposes and should probably be left alone normally
compactor:
compaction:
block_retention: 1h # overall Tempo trace retention. set for demo purposes
metrics_generator:
registry:
external_labels:
source: tempo
cluster: docker-compose
storage:
path: /var/tempo/generator/wal
remote_write:
- url: http://XXXXXXX:9090/prometheus/api/v1/write
send_exemplars: true
traces_storage:
path: /var/tempo/generator/traces
storage:
trace:
backend: local # backend configuration to use
wal:
path: /var/tempo/wal # where to store the the wal locally
local:
path: /var/tempo/blocks
overrides:
defaults:
metrics_generator:
processors: [service-graphs, span-metrics, local-blocks] # enables metrics generator
global:
max_bytes_per_trace: 90000000
Conf docker-compose tempo
services:
# Tempo runs as user 10001, and docker compose creates the volume as root.
# As such, we need to chown the volume in order for Tempo to start correctly.
init:
image: &tempoImage grafana/tempo:latest
user: root
entrypoint:
- "chown"
- "10001:10001"
- "/var/tempo"
volumes:
- ./tempo-data:/var/tempo
tempo:
image: *tempoImage
command: [ "-config.file=/etc/tempo.yaml" ]
volumes:
- ./shared/tempo.yaml:/etc/tempo.yaml
- ./tempo-data:/var/tempo
ports:
- "14268:14268" # jaeger ingest
- "3200:3200" # tempo
- "9095:9095" # tempo grpc
- "4317:4317" # otlp grpc
- "4318:4318" # otlp http
- "9411:9411" # zipkin
depends_on:
- init
k6-tracing:
image: ghcr.io/grafana/xk6-client-tracing:latest
environment:
- ENDPOINT=tempo:4317
restart: always
depends_on:
- tempo
conf OTEL Agent (setenv.sh):
CATALINA_OPTS=“$CATALINA_OPTS
-javaagent:/opt/tempo/opentelemetry-javaagent.jar
$CUSTOM_ENV”
export OTEL_EXPORTER_OTLP_ENDPOINT=http://10.250.2.89:4318
export OTEL_RESOURCE_ATTRIBUTES=service.name=ehcos-04-pre
