Grafana datasource plugin for PRTG

[maxmarkusprogram]

Hi everyone,
I’ve created a new branch of the grafana-prtg plugin where you can log in without restarting Grafana or Docker. The previous login issue has been fixed in this version.

This branch contains a simplified version of the code – without streaming, tracing, or metrics – making it lightweight and easier to understand or extend.

Feel free to clone and use it in your own projects.
Feedback is welcome – feel free to reach out!

---

[ykarami1]

will this plugin works if Grafana is installed on Windows server? I cloned and copied the files to the plugin folder but I can’t find the datasource.

[madall]

Hi i dont get it to run on a Debian Linux Grafana Server.
What i have to do

[mansion]

There is a guide in this thread that shows you how to install it on Ubuntu server.

[olsonnn]

i have the exact same thing on debian12 and it’s driving me crazy. Did you found a solution?

[olsonnn]

i found the issue. This plugin seems not working in 10.4.x only after 11.0?

[arcdelsh]

Thanks for this great plugin.
I installed it on Grafana v11.5.2 and I have an issue when I tried to get data with *. In every field in the query, I see a placeholder that says, ‘Select Group/Device/Sensor or type *’. If I understand correctly, this means I should be able to type * to select everything, but when I do, I don’t get any data."

[phanminhquanntt]

Hi everyone,

I thought I added the PRTG plugin to my Grafana but now I’m getting an error that the plugin can’t get information from PRTG I tried to connect but it always fails The grafana version I’m using is v12.2.0 and PRTG I’m using version 25.2.106

[maxmarkusprogram]

@phanminhquanntt

Hi everyone,

I thought I added the PRTG plugin to my Grafana but now I’m getting an error that the plugin can’t get information from PRTG I tried to connect but it always fails The grafana version I’m using is v12.2.0 and PRTG I’m using version 25.2.106

Restart Grafana, or pull the Grafana-prtg branch, and you can register again.

[phanminhquanntt]

Hi Maxmaerkus,
Thank you for replying

Now I can add data source to Grafana

But there is a new problem that when I add new data source, the old data source cannot be used even though it was normal before. It’s like only 1 PRTG data source can exist on grafana

[maxmarkusprogram]

Read please Grafana datasource plugin for PRTG - #38 by mansion

[phanminhquanntt]

@maxmarkusprogram

GitHub - 1DeliDolu/PRTG: Grafana Datasource Plugin for PRTG

Hi Max
Could you help me check issue time zone prtg connect grafana not match

[maxmarkusprogram]

Hi, Can you please tell me which time zone your PRTG server is running in?

[phanminhquanntt]

I’m use time zone UTC +7 on Windows server running service PRTG and Ubuntu server running service Grafana

[taghibdh]

Hi,

I have installed and connected to my PRTG env.

Is there any dashboard templates? I dont got no time to create them myselves.

[edmarferraz1]

Guys, can you help me with a question:

I configured the plugin in my Grafana v12.0.2 (5bda17e7c1), the plugin is working but there are 2 things that are bothering me:

1 - When loading a complete dashboard, it always fails to display some panel. I always have to keep clicking refresh to load the rest.

2 - I’m using America/Sao_Paulo Brazil UTC-03:00 and the times are correct. However, any date/time range I select in Grafana, the panels don’t show the entire range. Example:

• If I select the last 6 hours, the graph only shows the last 3 hours.

• If I select the last 12 hours, the graph only shows the last 9 hours.

It seems to always cut off the first 3 hours.

@maxmarkusprogram can you help me with this?

I’m using Rocky Linux 8.10.

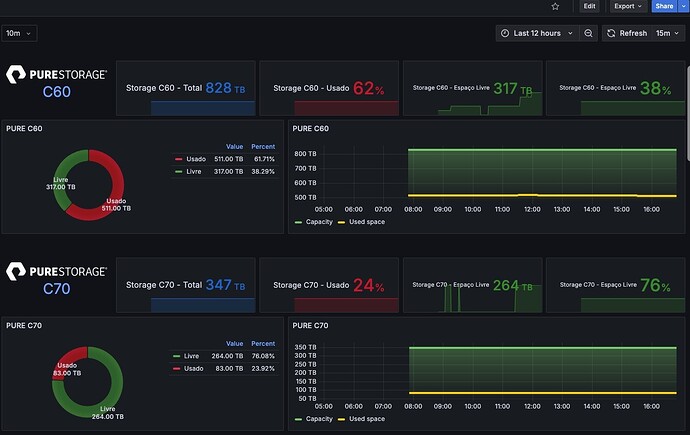

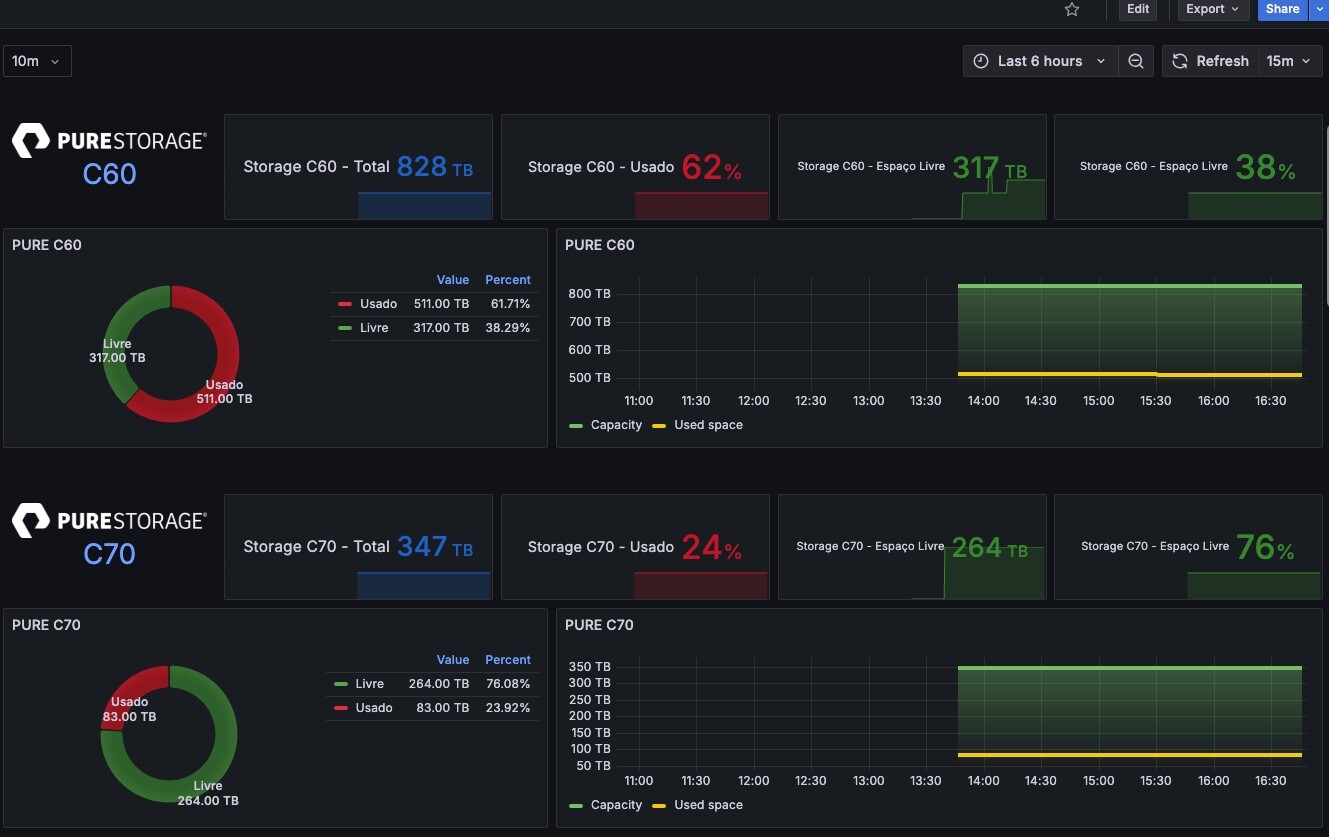

See the images below.

[yosiasz]

What is your datasource and is your datasource datetime column UTC?

[edmarferraz1]

Hello @yosiasz.

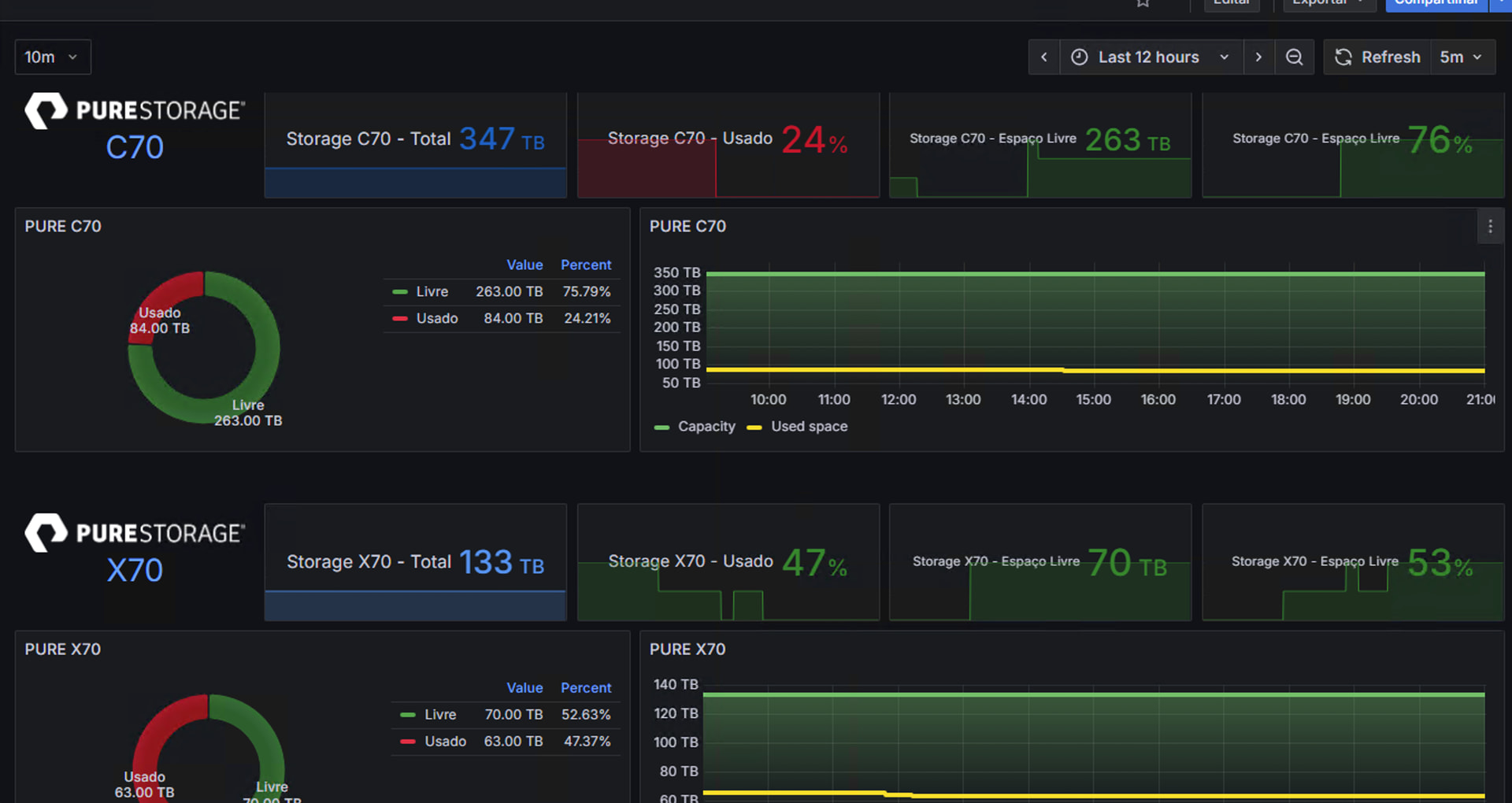

It’s America/Sao_Paulo, see the image below.

[edmarferraz1]

Guys, I found the problem

Problem Summary

• The plugin converted the time range twice:

1. The range coming from Grafana was forced to UTC and,

2. On the backend, the API converted it again to a hard-coded time zone (Europe/Berlin / Avrupa/Istanbul).

• This double offset caused a ~3 hour cutoff at the beginning or end of the graphs when the environment was in America/Sao_Paulo (UTC-3).

• The parser also converted times to time.Local, which could apply another offset depending on the host.

What I did

1. Standardized the timezone via the datasource settings and defined UTC as the fallback.

2. Removed .UTC() when calling the API — the API itself handles the conversion with the TZ configured.

3. In the parser:

• Parses in the configured timezone;

• Returns always in UTC (consistent epoch);

• No extra conversion to time.Local.

4. In the historical call:

• Uses the configured timezone (not hard-coded);

• Reduced the range “padding” to ±5 min (previously ±1 h).

---

Altered excerpts

1. pkg/plugin/parsetime.go

Main changes:

- var defaultTimezone = "Avrupa/Istanbul"
+ var defaultTimezone = "UTC" // safe fallback

+ func SetDefaultTimezone(timezone string) {
+ tz := strings.TrimSpace(timezone)
+ if tz == "" { backend.Logger.Info("No timezone provided..."); return }
+ if _, err := time.LoadLocation(tz); err != nil {
+ backend.Logger.Warn("Invalid timezone..., using UTC", "provided", tz, "error", err)
+ defaultTimezone = "UTC"; return
+ }
+ defaultTimezone = tz
+ backend.Logger.Info("Setting default timezone for date parsing", "timezone", defaultTimezone)
+ }

- // inside parsePRTGDateTime(...)
- destLoc := time.Local
+ // removed: does not convert to time.Local

- parsedTime, _ := time.ParseInLocation(layout, datetime, sourceLoc)
- utcTime := parsedTime.UTC()
- localTime := utcTime.In(destLoc)
- return localTime, strconv.FormatInt(localTime.Unix(), 10), nil
+ if t, err := time.ParseInLocation(layout, datetime, sourceLoc); err == nil {
+ tUTC := t.In(time.UTC) // normalizes to UTC
+ return tUTC, strconv.FormatInt(tUTC.Unix(), 10), nil
+ }

And also: when PRTG returns “date timeA - timeB” and timeB < timeA, add +1 day to cover midnight crossing.

---

2. pkg/plugin/prtg_api.go → function GetHistoricalData(...)

Complete function change (key points highlighted):

func (a *Api) GetHistoricalData(sensorID string, startDate, endDate time.Time) (*PrtgHistoricalDataResponse, error) {

if sensorID == "" { return nil, fmt.Errorf("invalid query: missing sensor ID") }

- // old: TZ hard-coded and buffer ±1h
- loc, _ := time.LoadLocation("Europe/Berlin")
- localStartDate := startDate.In(loc).Add(-1 * time.Hour)
- localEndDate := endDate.In(loc).Add( 1 * time.Hour)

+ // new: uses TZ configured in settings; fallback UTC
+ loc, err := time.LoadLocation(defaultTimezone)
+ if err != nil { loc = time.UTC }
+ // small buffer only for edges
+ localStartDate := startDate.In(loc).Add(-5 * time.Minute)
+ localEndDate := endDate.In(loc).Add( 5 * time.Minute)

const format = "2006-01-02-15-04-05"

sdate := localStartDate.Format(format)

edate := localEndDate.Format(format)

// ... logic for choosing 'avg' preserved ...

// ... request and cache unchanged ...

log.DefaultLogger.Debug("Requesting historical data",
- "startDate", sdate, "endDate", edate, "avg", avg)
+ "startDate", sdate, "endDate", edate, "avg", avg, "timezone", defaultTimezone)
}

---

3. pkg/plugin/query.go

Ensure not passes .UTC() in the call:

- historicalData, err := d.api.GetHistoricalData(qm.SensorId, timeRange.From.UTC(), timeRange.To.UTC())
+ historicalData, err := d.api.GetHistoricalData(qm.SensorId, timeRange.From, timeRange.To)

Standardize timestamps to UTC when filling frames:

- timesRT = append(timesRT, timestamp)
+ timesRT = append(timesRT, timestamp.UTC())

and

- timesRT = []time.Time{timestamp}
+ timesRT = []time.Time{timestamp.UTC()}

---

Result

• The selected interval in Grafana (e.g., Last 6/12 h) is now exactly respected;

• Plugin logs now show Parsing datetime ... timezone=America/Sao_Paulo (or whatever you define in the settings);

• No “cutoff” of ~3 h and no unexpected shifts between panes.

@maxmarkusprogram feel free to test and commit to Git if you want
